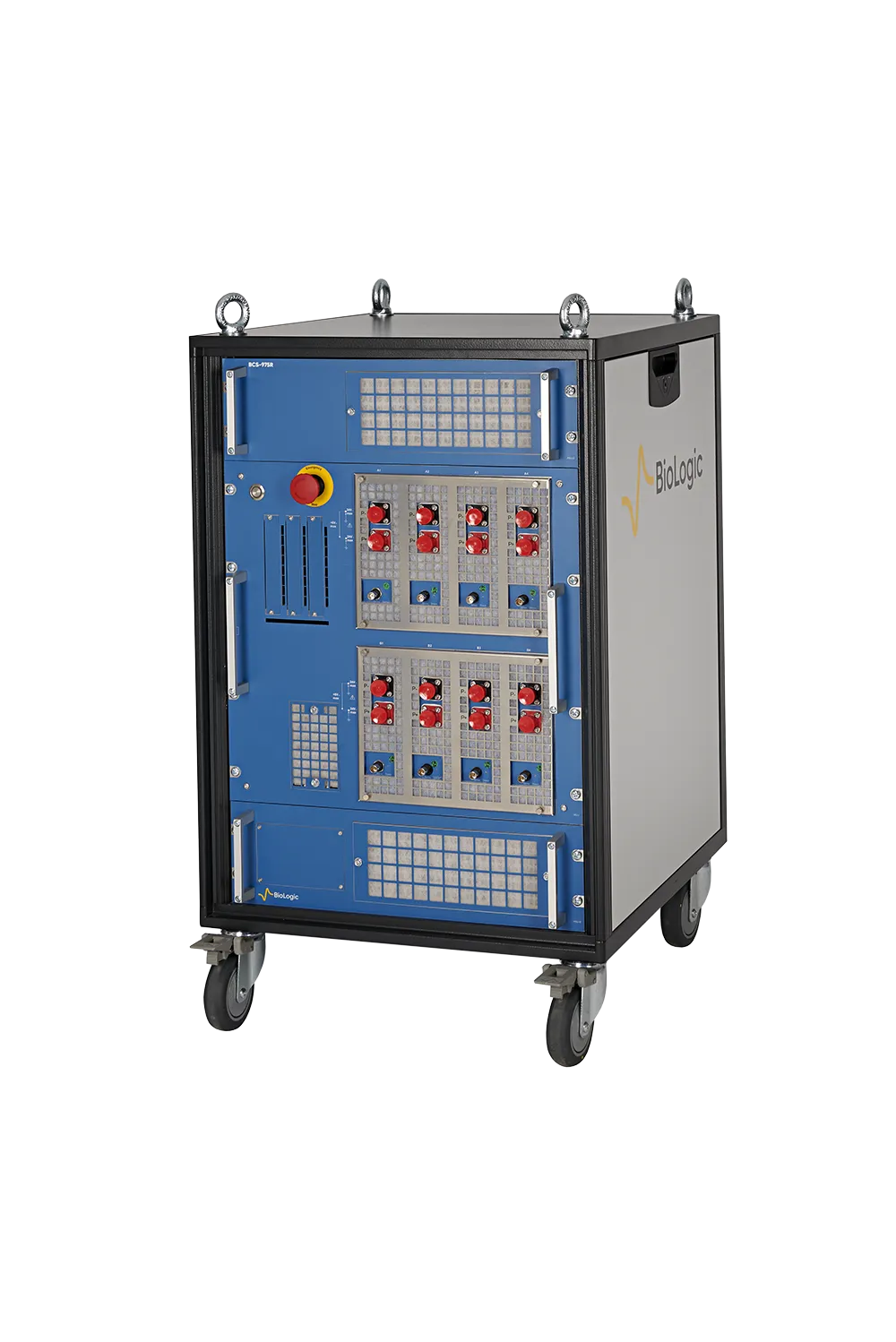

BCS-975R Premium Battery Cyclers – BioLogic

Enhance Your Battery Testing with the BCS-975R Premium Cyclers

Introducing the BCS-975R Premium Battery Cyclers from BioLogic, a groundbreaking solution for those with demanding battery testing requirements. The BCS-900 Series stands out with its unparalleled performance, seamlessly integrated with the innovative BT-Lab&reg\\; Suite software. This range of ultra-precise cyclers boasts features like diverse current ranges, rapid bandwidths, intelligent sampling, and compatibility with external devices and temperature probes, making it a top-tier choice for battery research and testing domains.

Designed for versatility and precision, the BCS-975R regenerative battery cycler caters to advanced research applications, featuring up to 300 A extendable current and native Electrochemical Impedance Spectroscopy (EIS) support. Its modular design offers up to 8 channels, each with 75 A capability, ensuring a high-capacity testing environment. The combination of three current ranges, optional auxiliary temperature monitoring, and the comprehensive BT-Lab&reg\\; Suite software embodies precision, accuracy, and modularity.

The BioLogic BCS-975R is the epitome of high-power battery testing. Engineered for accuracy and developed with high-resolution measurement capability, this cycler series introduces optional built-in FRA for integrated EIS experiments, ensuring no compromise on quality. The BT-Lab&reg\\; Suite software enhances the testing process, offering robust control, monitoring, and data analysis tools. Discover how the BCS-975R Premium Battery Cyclers can transform your battery testing workflow.

Technical Specifications

BCS-975R battery cycler
Channels per module8
Voltage
Range0 V to 5 V
Control resolution±100 μV
Measurement resolution0.360 μV (24 bit)
Accuracy15 mV + 0.05% of setting
Slew rate2.5 kV/s
Current
Max (continuous) per channel±75 A\\;
up to ±300 A, with 4 channels in parallel
Ranges3: 75 A down to 750 mA
Control resolutionDown to 360 nA
Measurement resolutionDown to 8.9 nA (24 bit)
Accuracy±0.03% of FSR* + 0.03% of setting
EIS
Built-inOptional on each module
Range2 kHz – 10 mHz
Measurement
Acquisition time1 ms
Time base5 ms
Additional measurement
ThermocoupleOptional Auxiliary
Cell connection
4 terminal leads
General
Height16U
Weight120 kg
Power consumption5000 W

*FSR: Full Scale Range

FAQ - BCS-975R Premium Battery Cyclers – BioLogic

What makes the BCS-975R Premium Battery Cyclers stand out in battery testing?

The BCS-975R from BioLogic offers unparalleled performance for advanced battery testing. Featuring diverse current ranges, rapid bandwidths, intelligent sampling, and compatibility with external devices and temperature probes, it is designed for high-precision tasks in battery research and testing. Its integration with innovative BT-Lab® Suite software further enhances its functionality, making it a top-tier choice for professionals.

How many channels does the BCS-975R support, and what are its current capabilities?

The BCS-975R supports up to 8 channels per module, with each channel capable of handling ±75 A continuously. For increased demand, it can support up to ±300 A with 4 channels in parallel. This makes it extremely versatile for various testing environments and requirements.

What are the voltage specifications of the BCS-975R?

The BCS-975R battery cycler operates within a range of 0 V to 5 V, with a control resolution of ±100 μV, and a measurement resolution of 0.360 μV (24 bit), ensuring highly precise voltage control and measurement for your testing needs.

Is Electrochemical Impedance Spectroscopy (EIS) supported by the BCS-975R?

Yes, the BCS-975R offers optional built-in EIS on each module, accommodating a range from 2 kHz to 10 mHz. This feature makes it possible to conduct integrated EIS experiments, enhancing the cyclers' applicability in advanced battery research and testing scenarios.

Can the BCS-975R facilitate temperature monitoring during tests?

Yes, the BCS-975R provides the option for auxiliary temperature monitoring via thermocouples. This additional measurement feature is crucial for tests requiring temperature stability or control, adding another layer of accuracy to your battery testing process.

What is the power consumption of the BCS-975R?

The BCS-975R has a power consumption of 5000 W, reflecting its powerful performance capabilities and its role in demanding testing environments where precision and efficiency are key.

What kind of support and software does the BCS-975R come with?

The BCS-975R is seamlessly integrated with BT-Lab® Suite software, offering robust control, monitoring, and data analysis tools. This comprehensive software enhances the entire testing process, enabling users to leverage the full capabilities of the BCS-975R for superior data management and analysis efficiency.
