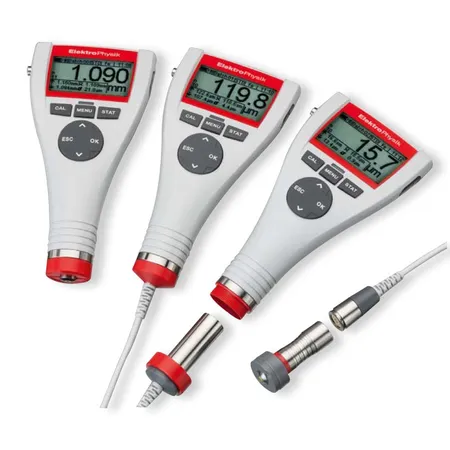

Enhance Quality Control with the MiniTest Series

Erichsen’s MiniTest series provides state-of-the-art solutions for non-destructive measurements of coating thickness. These advanced gauges are designed for precision and versatility, offering accurate thickness measurement of non-magnetic layers such as paint, plastic, chrome, and other galvanic, non-magnetic layers on ferromagnetic substrates like steel and iron. Additionally, they are capable of measuring insulating layers on conductive substrates, including aluminium, copper, titanium, and austenitic stainless steel, across a broad range of measurement settings.

The MiniTest series is engineered to meet the demands of industries requiring exact precision in coating thickness to ensure the quality and longevity of their products. By leveraging these tools, businesses can significantly enhance their quality control processes, allowing for the fine-tuning of product finishes, adherence to international standards, and ultimately, increased customer satisfaction.

Technical Specifications
Technical data
  • DT /NDT: NDT
  • Substrate: F / NE
  • Data memory: 10 batches for a maximum of 10,000 readings (MiniTest 725 and 735) Memories can be partitioned as needed
  • Dual sensors: Automatic recognition of the substrate material with FN sensors
  • Power supply: 2 pcs batteries, type AA (Mignon)\\; rechargeable NiMH batteries, type AA/HR6 as an option. Battery or rechargeable battery setting option to adapt to the matching nominal voltage
  • Measuring rate: 70 readings per minute in the single mode 20 readings per second in the continuous mode
Additional Specifications
  • Continuous mode: For quick identification of thickness variations
  • Data interfaces: USB and Bluetooth
  • Layer Thickness: up to 2600 µm
  • Measuring units: Switchable from metric (µm, mm, cm) to imperial (mils, inch, thou)
  • Calibration modes: Factory calibration, zero-point-, 2-point-, 3-point-calibration, calibration method “rough“
  • Norms and standards: DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, ASTM B 244, B 499, D7091, E 376, AS 3894.3, SS 1841 60, SSPC-PA 2
  • Storage temperature: – 20 °C ... 70 °C
  • Monitoring of limits: Visual and audible signal output
  • Operating temperature: – 10 °C ... 60 °C
  • Statistical evaluation: Number of readings, min, max, mean value, standard deviation, coefficient of variation, single value statistics, blocks statistics (norm-conforming / freely configurable)
  • Calibration procedures according to international standards: ISO, SSPC, “Swedish“, “Australian“

FAQ - MiniTest – ERICHSEN

What types of substrates can the MiniTest series measure?

The MiniTest series is capable of measuring non-magnetic layers like paint, plastic, and chrome on ferromagnetic substrates such as steel and iron. It can also measure insulating layers on conductive substrates, including aluminium, copper, titanium, and austenitic stainless steel.

What are the key specifications of the MiniTest series?

The MiniTest series offers a range of features including NDT (Non-Destructive Testing), data memory of up to 10,000 readings, automatic sensor recognition, dual power supply options (AA batteries or rechargeable NiMH batteries), and a measuring rate of up to 70 readings per minute in single mode. They support both USB and Bluetooth data interfaces and offer up to 2600 µm in layer thickness measurements.

Can the measurement units be switched between metric and imperial units?

Yes, the MiniTest series allows for the switching of measurement units from metric (µm, mm, cm) to imperial (mils, inches, thou), making it versatile for global use and preferences.

What types of calibrations modes does the MiniTest series support?

The MiniTest series supports various calibration modes including factory calibration, zero-point calibration, 2-point calibration, 3-point calibration, and the calibration method "rough". These modes ensure accurate measurements across a variety of applications.

Are the MiniTest series gauges compliant with international standards?

Yes, the gauges comply with numerous international norms and standards including DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, ASTM B 244, B 499, D7091, E 376, AS 3894.3, SS 1841 60, and SSPC-PA 2, ensuring their reliability and accuracy in quality control processes globally.

Is it possible to perform statistical evaluations with the MiniTest series?

Yes, the MiniTest series is equipped for comprehensive statistical evaluations including the number of readings, minimum, maximum, mean values, standard deviation, and coefficient of variation. It supports both norm-conforming and freely configurable blocks statistics for thorough data analysis.

What temperature ranges can the MiniTest series operate within?

The MiniTest series can operate within a temperature range of -10 °C to 60 °C and can be stored in temperatures ranging from -20 °C to 70 °C, offering flexibility in various working conditions.
