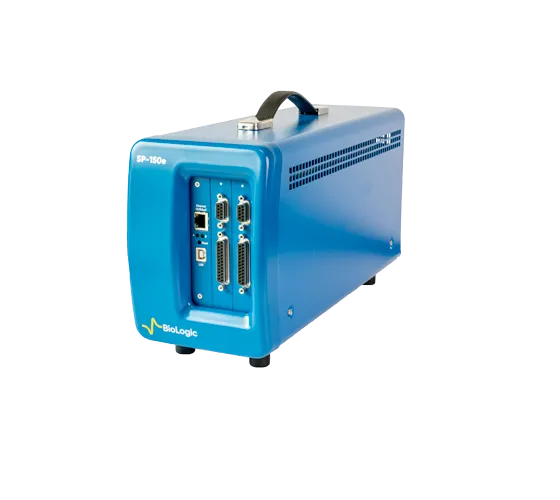

BioLogic SP-150e single channel potentiostat

BioLogic SP-150e single channel potentiostat

Optimize Your Electrochemical Research with BioLogic SP-150e

The BioLogic SP-150e stands out as a high-performance electrochemical workstation, tailor-made to evolve alongside your research requirements. This cutting-edge, two-channel, EIS-ready analyzer is adept across a broad spectrum of general electrochemistry tasks, yet it particularly shines in energy-focused explorations such as batteries, supercapacitors, fuel cells (including RRDE compatibility), and electrolysis studies.

Boasting an unrivaled ampere capacity (up to 800 A with boosters), the SP-150e is the pinnacle of its class, featuring comprehensive Electrochemical Impedance Spectroscopy validation through three quality indicators (THD, NSD, NSR) and Ethernet connectivity to enhance collaborative efforts.

At the heart of the SP-150e’s operation is BioLogic’s EC-Lab software, a benchmark in control and analysis that brings advanced techniques under your control without the need for data export. Embedded within this interface is the Z-Fit EIS fitting software, streamlining your workflow by integrating control, analysis, and fitting into a single, efficient package.

Lean into the future of electrochemical research with a workstation that’s designed to grow as your projects expand, ensuring you have the power, precision, and flexibility required to push the boundaries of scientific understanding.

Technical Specifications
General
Slots availableUp to 2
Electrodes connections2, 3, 4, 5
Compliance20 V adjustable from ± 10 V between [-20 \\; 20] V
Acquisition time20 µs with EC-Lab developer package, 200 µs with EC-Lab.
Live processed data : 200 µs, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developer package
Add-ons compatibilityYes
Dimension (W x D x H)136 x 372 x 209 mm
Weight3.9 kg
Power requirement110 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
RangesCustomizable ranges. Compliance of 20 V adjustable (example 0 - 20 V). Up to 60 V with FlexP-0060± 2,5 V, ± 5 V, ± 10 V. ± 10 V adjustable (example 0 - 20 V). Up to 60 V with FlexP0060/FlexP0160
Accuracy&lt\\; 0.1 % FSR* (20 mV)&lt\\; 0.1 % FSR* (20 mV)
Resolution5 µV to 305 µV76 µV below 10 V, 152 µV from 10 to 15 V, 305 µV from 15 to 20 V
Current
Ranges± 10 µA to ± 1 A (6 ranges). Automatic current range available. Up to 800 A with four FlexP-0012.
Accuracy&lt\\; 0.1 % FSR* (min 20 nA)
Resolution0.004 % of the range (min 760 pA)
EIS
EIS capability1 MHz to 10 µHz
EIS quality indicatorsYes (with "e" type channel board)
Advanced
Floating optionsCE to ground
Permeation (WE to ground)No
Multi-electrode (CE to ground)Yes (with "e" type channel board)
FiltersSoftware
Input/ouput2x analog inputs
1x analog output
3x TTL (trigger input/output, and safety)
2x monitor outputs (current and voltage)
Stability control mode 7 bandwidths
CalibrationMore than 50 verified points.

FAQ - BioLogic SP-150e single channel potentiostat

What applications is the BioLogic SP-150e best suited for?

The BioLogic SP-150e is highly versatile, excelling in a wide range of electrochemical research tasks including energy-focused studies on batteries, supercapacitors, fuel cells, and electrolysis processes. Its RRDE compatibility further demonstrates its suitability for comprehensive electrochemical experiments.

Can the BioLogic SP-150e handle high current applications?

Yes, the SP-150e can manage an impressive ampere capacity, supporting up to 800 A with booster modules. This capability makes it an ideal choice for demanding electrochemical tasks that require substantial power.

Does the SP-150e come with software support?

Indeed, it includes BioLogic's EC-Lab software, an industry leader for control and analysis in electrochemistry. EC-Lab allows for direct data management and advanced technique application without needing to export data, enhancing efficiency and productivity in research projects.

What makes the BioLogic SP-150e different in terms of connectivity?

The SP-150e features Ethernet connectivity, facilitating easy integration into networked environments for collaborative research. Additionally, it supports direct connections including USB 2.0, enabling versatile interfacing with a wide range of devices.

How does the SP-150e ensure reliability in electrochemical impedance spectroscopy (EIS)?

This workstation offers comprehensive validation for EIS via three quality indicators: THD, NSD, and NSR. These indicators help confirm the accuracy and reliability of EIS measurements, ensuring high-quality data for analysis.

Is the BioLogic SP-150e upgradable?

Yes, the SP-150e is designed to grow with your research projects. It offers up to two slots for expansion, compatibility with various add-ons, and software updates, making it a future-proof investment for your lab.

What is the dimension and weight of the BioLogic SP-150e?

The SP-150e measures 136 mm in width, 372 mm in depth, and 209 mm in height, weighing around 3.9 kg. This compact size and lightweight design make it easy to accommodate in any lab setting.
