PPBH-132 / PPBH-1100 – BioLogic

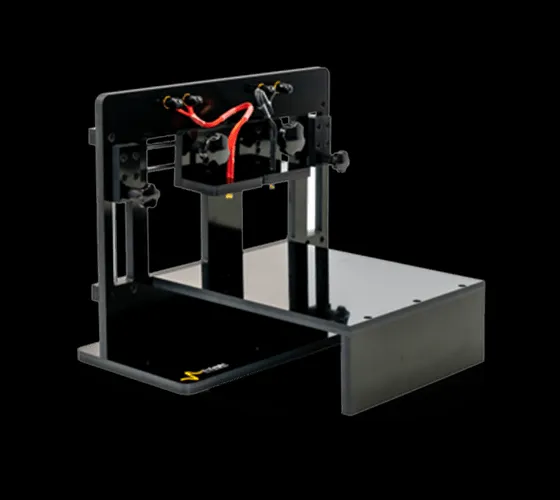

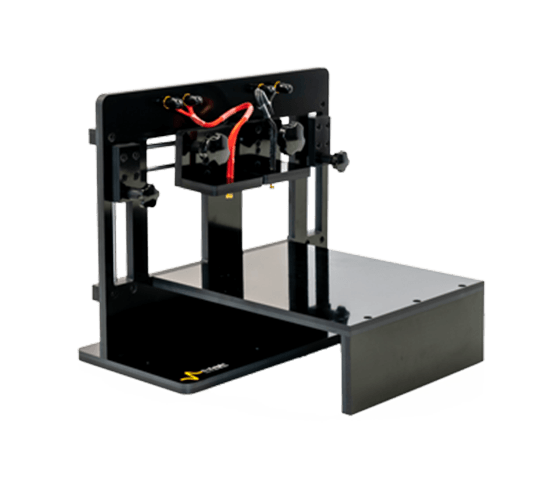

Both the PPBH-132 and PPBH-1100 are designed for testing prismatic and pouch cells. They offer a versatile solution to accommodate a wide range of battery testing requirements for these cell types.

The PPBH-132 supports currents up to 32 A, while the PPBH-1100 can facilitate currents up to 100 A. This makes the PPBH-1100 suitable for higher current applications.

Yes, both holders come equipped with connectors that are compatible with all instruments. The PPBH-132 has 4 mm receptacles, and the PPBH-1100 features both 4 mm and 6 mm flush mounting receptacles, allowing for seamless integration into your testing setup.

Both the PPBH-132 and PPBH-1100 can operate up to a maximum temperature of 80°C, ensuring they meet the requirements for a wide range of battery testing scenarios.

The 4-point measurement capability provided by the PPBH-132 and PPBH-1100 ensures high accuracy in testing. This method reduces the impact of contact and lead resistances, offering more precise and reliable battery performance data.

Yes, the PPBH-132 and PPBH-1100 are designed with adaptability in mind. They can accommodate prismatic and pouch cells of various sizes, with a cell max height of 139 mm and lead separation distances ranging from 66 mm to 155 mm. This flexibility ensures a perfect fit for a wide range of applications.

The PPBH-132 measures 265 x 320 x 300 mm and weighs 3 kg. The larger PPBH-1100 measures 320 x 320 x 360 mm and has a weight of 5.1 kg. These dimensions and weights allow for easy integration into most testing setups.
