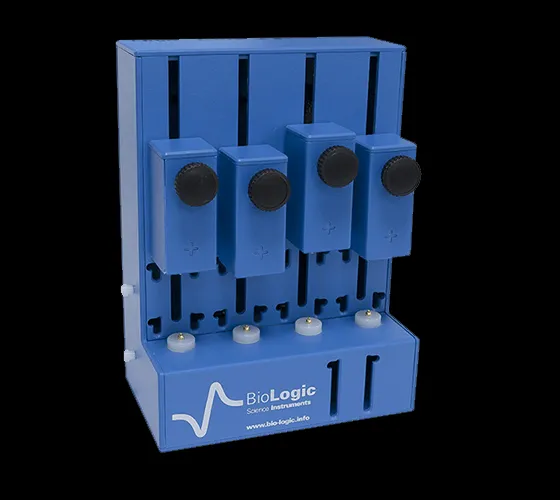

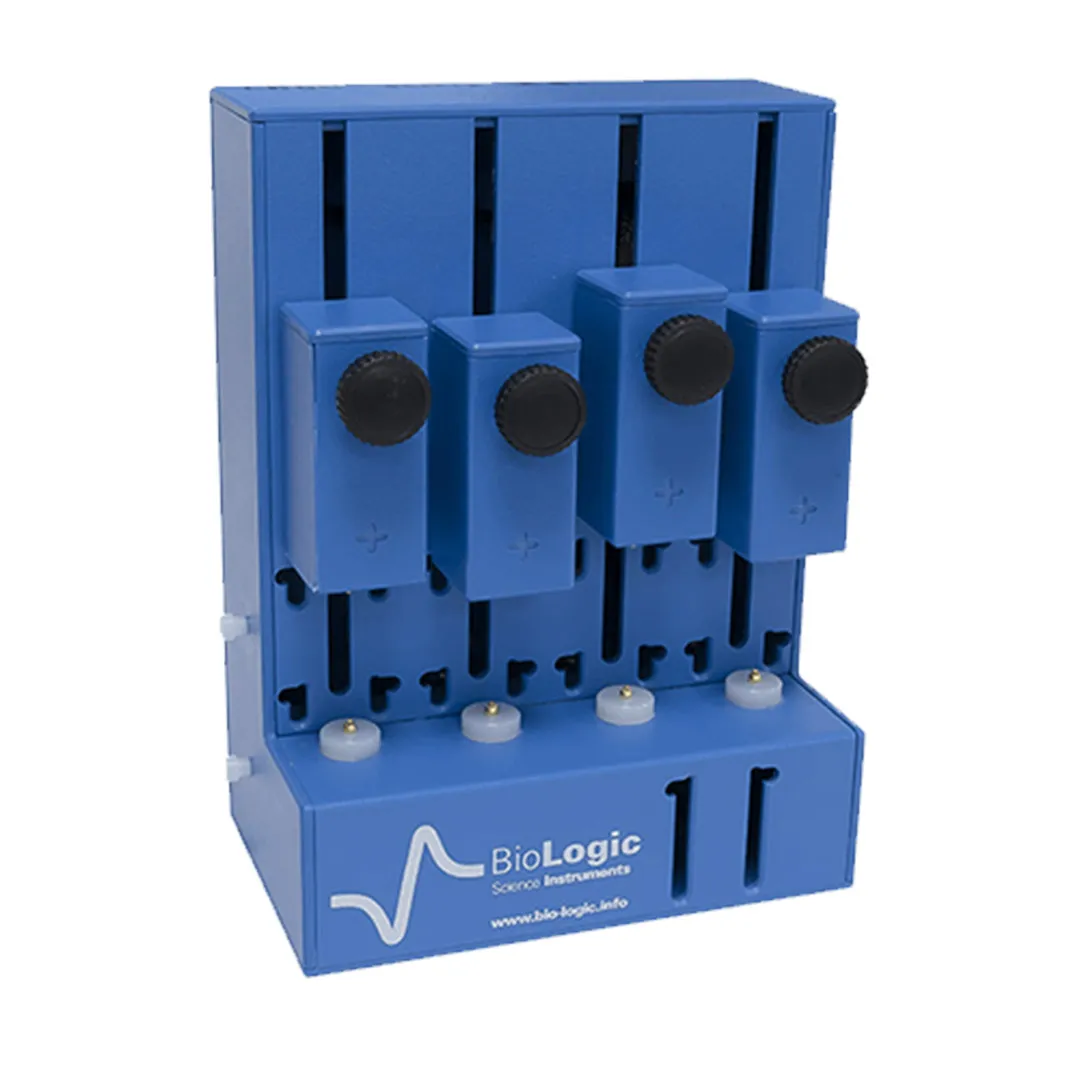

Optimize Your Battery Testing Capabilities with the BH-1i Battery Holder

The BH-1i from BioLogic is a state-of-the-art, 4-channel battery holder designed to streamline and enhance your battery testing process. Offering compatibility with a wide range of battery types, including coin cells, 18650, and 26650 cells, the BH-1i ensures up to four batteries can be tested simultaneously with maximum efficiency. Engineered to support a high current flow of up to 12 A per channel, this modular unit is a game-changer for laboratories and research facilities focusing on battery innovation and testing.

Featuring 2 mm receptacles, the BH-1i facilitates seamless connections with Bio-Logic potentiostat/galvanostat systems, while its 4 mm power receptacles allow for easy integration with boosters and BCS-8XX battery testers. A unique four-point measurement system guarantees minimal ohmic drop and maximum accuracy, ensuring reliable results. Expandable to a 16-channel setup when clipped together, the BH-1i offers unparalleled versatility and scalability for your testing needs.

Delivering precision, flexibility, and scalability, the BH-1i battery holder is your key to advancing battery testing methodologies.

Technical Specifications
Cell typeCylindrical
Cell max diameter /mm26
Cell min height /mm0
Cell max height /mm76
Number of channels4
Max current /A12
Measurement type4 point
Connectors size /mm2 and 4
To be used withAll instruments
Max operating T°/°C60
Size: H x W x D /mm205 x 150 x 95
Weight /kg0.6
Catalog No.
BH-1i092-22/15

FAQ - BH-1i – BioLogic

What types of batteries can the BH-1i Battery Holder accommodate?

The BH-1i is designed for versatility, supporting a wide variety of cylindrical cell types including coin cells, and 18650 and 26650 cells. It can accommodate cells with a maximum diameter of 26mm and a height ranging from 0 to 76mm.

How many channels does the BH-1i support, and what is the maximum current per channel?

This advanced battery holder features four independent channels for simultaneous testing of up to four batteries. Each channel can support a high current flow of up to 12A.

Can the BH-1i be integrated with external testing equipment?

Yes, the BH-1i offers seamless connectivity options. It features 2mm receptacles for connection with Bio-Logic potentiostat/galvanostat systems and 4mm power receptacles for easy integration with boosters and BCS-8XX battery testers.

What is the significance of the four-point measurement system in the BH-1i?

The four-point measurement system is a critical feature of the BH-1i as it helps minimize ohmic drop, ensuring highly accurate and reliable battery performance testing results.

Is the BH-1i expandable for larger testing configurations?

Yes, one of the standout features of the BH-1i is its scalability. It can be expanded to a 16-channel setup by clipping multiple units together, making it suitable for both small and large-scale testing operations.

What is the maximum operating temperature of the BH-1i Battery Holder?

The BH-1i can safely operate at temperatures up to 60°C, accommodating various testing conditions without compromising on safety or performance.

What are the dimensions and weight of the BH-1i Battery Holder?

The BH-1i measures 205mm in height, 150mm in width, and 95mm in depth. It weighs approximately 0.6kg, making it a compact and manageable solution for most laboratory settings.
