CBH-4 / CBH-8 – BioLogic

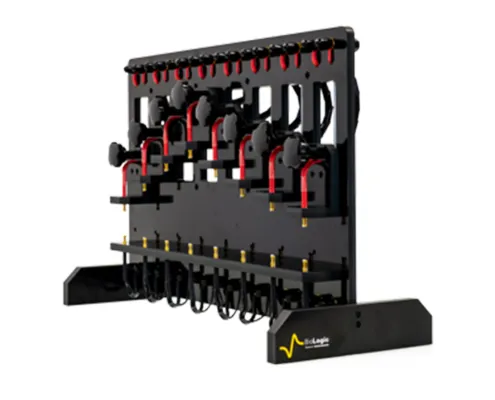

CBH-4 and CBH-8 battery holders are designed for high-power cylindrical battery cell testing, with the ability to handle a maximum current of 32 A. They feature a precise 4-point measurement system for accurate AC and DC measurements, accommodating a wide range of battery sizes with 4 or 8 positions. Their design ensures reliable connectivity to measurement instruments, making them suitable for both laboratory and field applications.

The CBH series is compatible with cylindrical cells that have a maximum diameter of 60 mm and a height ranging from 30 mm to 100 mm. These specifications cater to a wide variety of large battery cells, including D sized cells.

Both the CBH-4 and CBH-8 battery holders can handle a maximum current of 32 amps. This high current capacity makes them ideal for testing high-power applications.

Yes, the CBH series battery holders feature 4 mm receptacles for both voltage sensing and power inputs, ensuring compatibility with all types of measurement instruments. This universal compatibility is essential for facilitating a wide range of energy research and quality assurance processes.

The durability and user-friendly design of the CBH series, alongside their reliable connectivity and versatile configurations, make them ideal for both laboratory and field use. Their robust construction ensures longevity and reliability in various testing scenarios.

The CBH-4 has dimensions of 335 x 260 x 150 mm and weighs 1.9 kg, while the CBH-8 is larger, measuring 335 x 520 x 150 mm and weighing 3.8 kg. This difference in size and weight accommodates the additional battery positions available in the CBH-8 model.

The catalog number for the CBH-4 is 092-C32/4, and for the CBH-8, it's 092-C32/8. These numbers can be useful for ordering or inquiring about each particular model.
