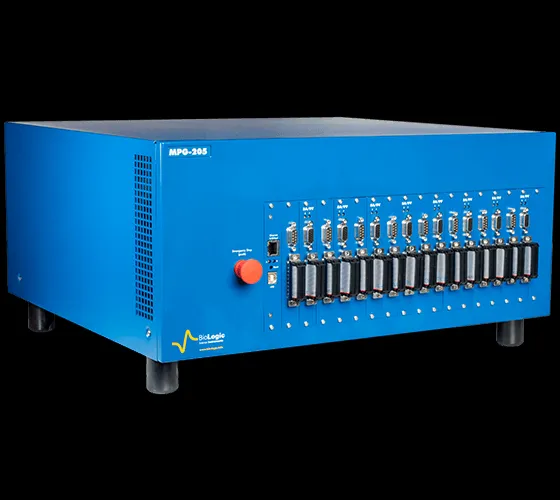

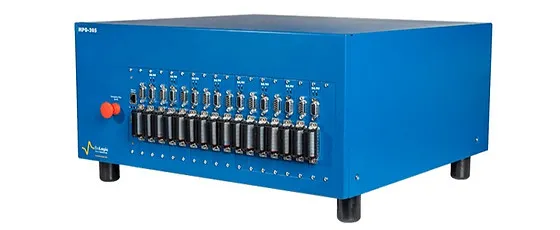

Optimize Your Battery Research with MPG-200 Series

Introducing the MPG-200 series, a superior battery testing system that combines the functional prowess of a high-end potentiostat/galvanostat with the straightforward usability of a battery cycler. Designed to cater to the intricate demands of rigorous battery testing, the MPG-200 series is the perfect tool for comprehensive battery investigation and development.

Each model within the MPG-200 series is equipped with features tailored for precise and versatile battery testing. With up to 16 independent channels that can handle a maximum current of ±100 mA, and voltage ranges stretching from -2 to +9 V, the MPG-200 is capable of testing any cell configuration, from half-cells to symmetrical ones.

The inclusion of Electrochemical Impedance Spectroscopy (EIS) as an optional feature allows for simultaneous analysis across all channels from 10 µHz to 100 kHz. This, along with a sampling rate of 200 µs and an impressive current resolution of 800 pA, ensures high precision in your battery research.

Whether for R&D or academic purposes, the MPG-200 series, with its comprehensive set of analysis tools and techniques, is specially designed for energy applications. Supported by EC-Lab® software, a benchmark in control software for electrochemical applications, it covers all aspects of battery testing from plan design to data analysis. Create a custom system with the option to stack units in a five-position rack for unparalleled testing autonomy.

Delve into advanced battery research with MPG-200 series and leverage precise, stable, and powerful battery testing technology to fuel your innovation.

Technical Specifications

MPG-2

MPG-205

Channel number168
Cell connection2, 3, 4 or 5 terminal leads2 or 4 terminal leads
Voltage
Range± 10 V-2 V: 9 V
Control resolution200 µV down to 5 µV
Measurement resolution0.004 % of FSR
Accuracy± 0.1 % of control ± 0.01% of FSR
Current
Max (continuous) per channel± 100 mA± 5 A
Ranges5: 100 mA down to 10 µA7: 5 A down to 10 µA
Control resolution0.004 % of FSR /0.8 nA
Measurement resolution0.004 % of FSR
Accuracy± 0.1 % of control ± 0.01 % of FSR
EIS
Built-inOptional: simultaneously on every channel
Range10 µHz to 100 kHz
Measurement
Acquisition time200 µs
Time base200 µs
Auxiliary inputs/outputs
Monitor ouputE and I monitorsI monitor
2 analog inputsAutomatic ± 2.5 V, ± 5 V, ± 10 V ranges – 16 bits resolution
1 analog output± 10 V range, 16 bits resolution
2 digital inputsTTL level trigger input
1 digital ouputTTL level trigger ouput
General
Dimensions (H x W x D)260 x 495 x 465 mm254 x 494 x 454 mm
Weight17 kg25 kg
Power consumption350 W860 W

FAQ - MPG-200 Premium Research Battery Cyclers – BioLogic

What is unique about the MPG-200 Premium Research Battery Cyclers?

The MPG-200 series stands out due to its combination of a high-end potentiostat/galvanostat and battery cycler, designed for in-depth battery testing. It offers up to 16 independent channels, voltage ranges from -2 to +9 V, and optional EIS for comprehensive analysis, making it the ideal solution for advanced battery research and development.

Can the MPG-200 series handle different cell configurations?

Yes, the MPG-200 series is versatile enough to test any cell configuration, including half-cells and symmetrical cells, with options for 2, 3, 4, or 5 terminal leads depending on the model. This flexibility ensures that researchers can test a wide range of battery types efficiently.

Is Electrochemical Impedance Spectroscopy (EIS) available on all MPG-200 models?

EIS is an optional feature that can be included in the MPG-200 series, allowing for simultaneous EIS analysis across all channels from 10 µHz to 100 kHz. This feature enhances the ability to conduct detailed battery material and performance analysis.

What software supports the MPG-200 series for battery testing?

The MPG-200 series is supported by EC-Lab® software, a leading control software for electrochemical applications. EC-Lab® facilitates every step of the battery testing process, from planning experiments to analyzing data, ensuring seamless operation and high-quality results.

How can I expand my testing capabilities with the MPG-200 series?

To accommodate extensive testing needs and higher throughput, the MPG-200 series allows for the stacking of units in a five-position rack. This configuration enables the simultaneous operation of multiple units, dramatically expanding testing capabilities without compromising precision or control.

What are the voltage and current specifications of the MPG-200 series?

The MPG-200 series provides a voltage range of -2 to +9 V and can handle a maximum continuous current per channel of ±100 mA. Its precision is ensured by a control resolution down to 200 µV and a measurement resolution of 0.004% of FSR, offering researchers the ability to conduct highly accurate tests.

How does the MPG-200 series ensure accurate and precise measurements?

Accuracy in the MPG-200 series is maintained through tight control and measurement resolutions of 200 µV and 0.004% of FSR, respectively, along with current accuracy of ± 0.1% of control ± 0.01 % of FSR. Additionally, the fast sampling rate of 200 µs and optional EIS across a wide frequency range enable precise dynamic and static battery testing.
