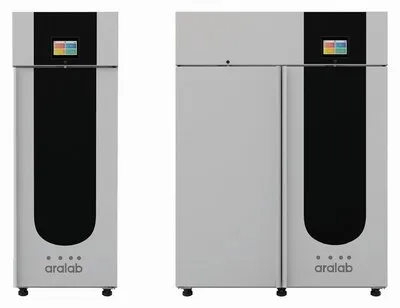

FITOCLIMA 600 & 1200 Plant Growth Chambers – Aralab

Advanced Environmental Simulation for Plant Research

The FitoClima 600 & 1200 Plant Growth Chambers are reach-in environmental simulation chambers designed for diverse applications in biotechnology and plant research, particularly suitable for Arabidopsis studies. These chambers offer unparalleled control over temperature, humidity, airflow, and photoperiod, providing a comprehensive range of options to cater to nearly any research scenario.

Superior Environmental Control

Aralab’s BIO reach-in chamber range delivers superior environmental control tailored for the diverse sectors of plant research, tissue culture and insect rearing. With a broad range of lighting and shelving options, these chambers are suitable for a wide array of research needs. The chambers can precisely recreate temperature and humidity with exceptional precision and uniformity.

ClimaPlus Touch-Screen Controller

Equipped with the new ClimaPlus touch-screen controller, these chambers allow for intuitive programming. The controller enables simulation of transitions like dusk and dawn, day-night cycles, cloud cover, dew formation, or precisely recreate any environmental condition vital for your research. The system features a 190mm x 150mm multicolor display and controls every environmental variable available.

Flexible Configuration Options

The chambers come with multiple configuration options including multi-tier shelving with easy height adjustment, suitable for small and medium plants, insect rearing or tissue culture. Vertical lights installed on the side walls allow increased storage and growth area, with high performance lighting providing over 1,000 µmoles intensity for medium to tall plants.

Comprehensive Software Integration

The FitoLog software pack enables data monitoring, logging and managing operations directly on a computer. It consists of 3 applications: FitoLog, FitoLogView and FitoProgram, allowing comprehensive management of programs and data from the FitoClima chambers.

Technical Specifications

FitoClima 600

  • Interior dimensions (H x W x D): 1340 x 600 x 660 mm (52.76 x 23.62 x 25.98 inches)
  • Exterior dimensions (H x W x D): 1980 x 730 x 920 mm (78.0 x 28.74 x 36.22 inches)
  • Maximum shelves with light control: Up to 4 shelves

FitoClima 1200

  • Interior dimensions (H x W x D): 1340 x 1320 x 660 mm (52.76 x 51.97 x 25.98 inches)
  • Exterior dimensions (H x W x D): 1980 x 1450 x 810 mm (78.0 x 57.09 x 31.89 inches)
  • Maximum shelves with light control: Up to 8 shelves

Environmental Control

  • Temperature range: -5 to 45°C (Lights Off), +5 to 45°C (Lights On)
  • Temperature uniformity: ±1°C (Lights Off)
  • Humidity range: 40-95% RH
  • Light intensity: Over 1,000 µmoles/m²s available

Controller

  • ClimaPlus touch-screen controller
  • Display: 190mm x 150mm multicolor
  • Programs: 32 programs of 24 segments each
  • Electrical connection: Single phase, available with all regional requirements

FAQ - FITOCLIMA 600 & 1200 Plant Growth Chambers – Aralab

What are the interior dimensions of the FitoClima chambers?

The FitoClima 600 has interior dimensions of 1340 x 600 x 660 mm (52.76 x 23.62 x 25.98 inches), while the FitoClima 1200 measures 1340 x 1320 x 660 mm (52.76 x 51.97 x 25.98 inches).

What temperature range can these chambers achieve?

The chambers can operate from -5 to 45°C with lights off, and +5 to 45°C with lights on, with temperature uniformity of ±1°C when lights are off.

How many shelves can each chamber accommodate?

The FitoClima 600 can accommodate up to 4 shelves with light control, while the FitoClima 1200 can hold up to 8 shelves with light control.

What controller system do the chambers use?

The chambers are equipped with the ClimaPlus touch-screen controller, featuring a 190mm x 150mm multicolor display that controls every environmental variable and allows programming of 32 programs with 24 segments each.

What software is available for these chambers?

The FitoLog software pack includes three applications: FitoLog, FitoLogView and FitoProgram, enabling data monitoring, logging and managing operations directly on a computer.

What research applications are these chambers suitable for?

These chambers are designed for diverse applications in biotechnology and plant research, including Arabidopsis studies, tissue culture, insect rearing, and various plant growth research scenarios.

What lighting options are available?

The chambers offer multiple lighting configurations including vertical lights installed on side walls, high performance lighting providing over 1,000 µmoles intensity, and dimmable lighting systems for programming day/night and dusk/dawn cycles.
