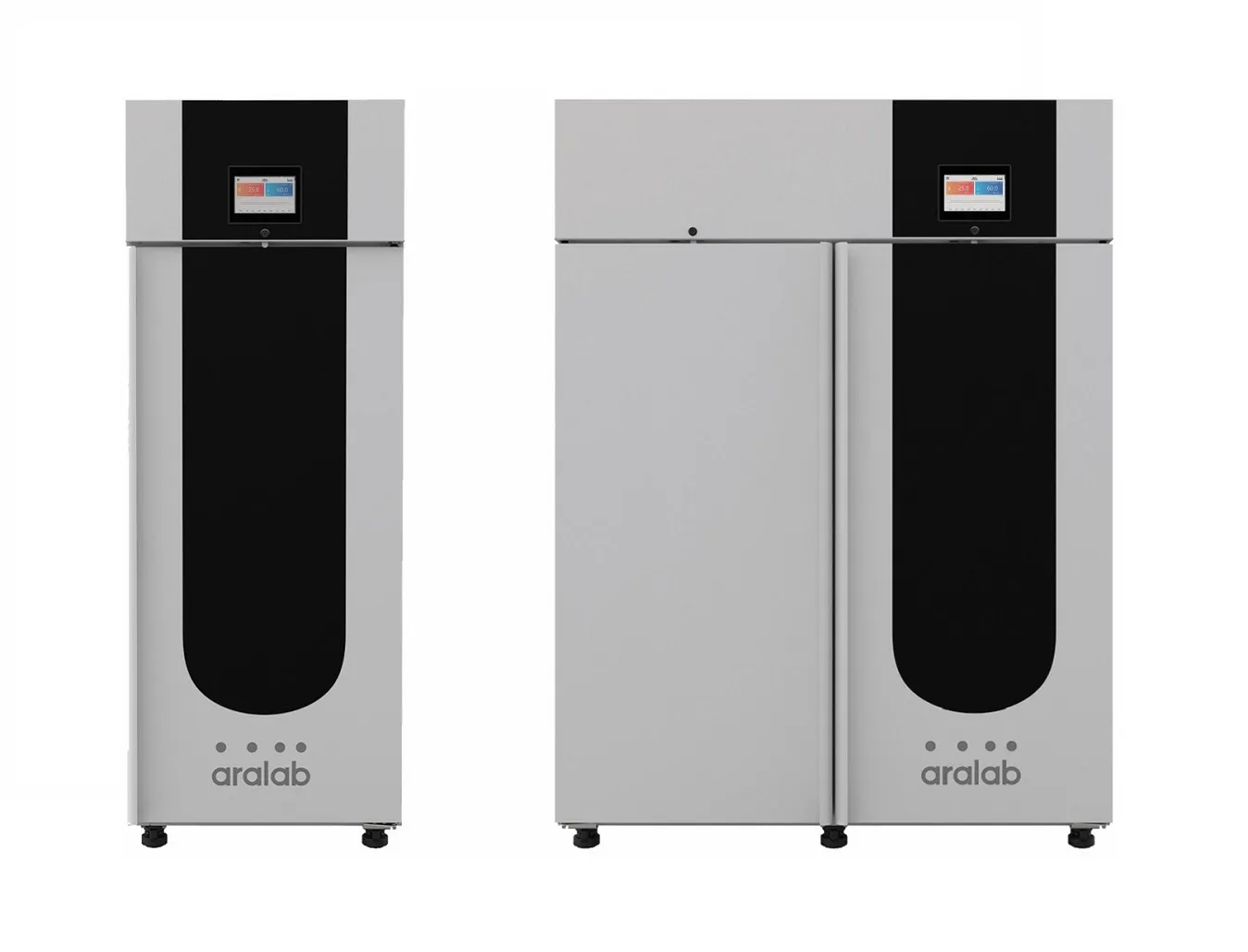

Reach-in PHCI Curing chambers – Aralab

Reach-in PHCI Curing chambers

Temperature and Humidity curing chambers, designed to aid curing of cement, concrete and mortar. They feature durable stainless-steel construction and specially reinforced shelves. Great uniformity and performance to meet any curing environment. Highly suitable for keeping 98%rH and stable temperature.

Product Details

Chambers designed to test the curing of cement, concrete and mortar samples, according to ASTM C192/C192M-14, IEC 679. Various optional accessories are available to further testing like UV and Solar radiation, CO2 Carbonation, and stainless-steel trays with draining capacity.

Technical Specifications

Inner Dimensions (H x W x D) S600: 1340 x 600 x 660 mm
Inner Dimensions (H x W x D) D1200: 1340 x 1320 x 660 mm
External Dimensions (H x W x D) S600: 1980 x 730 x 920 mm
External Dimensions (H x W x D) D1200: 1980 x 1450 x 810 mm
Internal Volume: 600 and 1200 liters
Temperature Range: From -5°C to 60°C
Humidity Range: From 35% to 98%
Shelf Size: 530MM x 630MM each
Shelves S600: 4 SHELVES (more can be added)
Shelves D1200: 8 SHELVES (more can be added)

FAQ - Reach-in PHCI Curing chambers – Aralab

What are Reach-in PHCI Curing chambers used for?

Reach-in PHCI Curing chambers are designed to test the curing of cement, concrete and mortar samples, according to ASTM C192/C192M-14, IEC 679 standards.

What temperature and humidity ranges do these chambers support?

The chambers support a temperature range from -5°C to 60°C and humidity range from 35% to 98%, making them highly suitable for maintaining 98%rH and stable temperature conditions.

What sizes are available for the PHCI Curing chambers?

Two sizes are available: S600 with 600 liters internal volume and D1200 with 1200 liters internal volume. Both feature different internal and external dimensions to suit various testing requirements.

What optional accessories are available?

Various optional accessories are available to further testing capabilities, including UV and Solar radiation equipment, CO2 Carbonation systems, and stainless-steel trays with draining capacity.

How many shelves do the chambers include?

The S600 model includes 4 shelves while the D1200 model includes 8 shelves. Additional shelves can be added as needed. Each shelf measures 530MM x 630MM.
