Environmental Simulation Chambers for Battery Testing

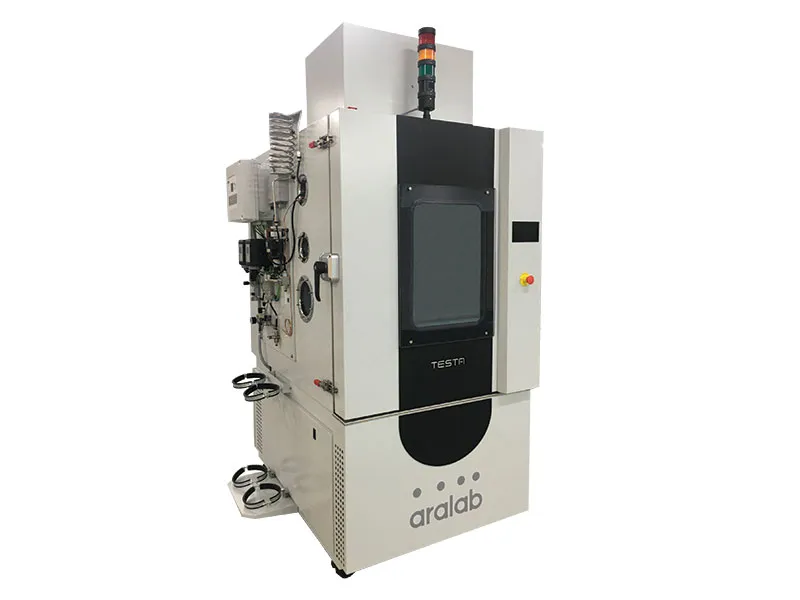

The TESTA BT Battery Testing Chambers are environmental simulation chambers designed for battery testing in line with the EUCAR hazard levels and protections. From reach-in to walk-in sizes, each EUCAR environmental test chamber can be equipped with a variety of safety components to ensure safe and reliable testing of energy storage systems.

Customized Solutions for Every Application

Aralab offers both standard and tailor-made solutions, putting an emphasis on creating systems that adhere to customers’ specific application needs. Each chamber can be equipped with a variety of safety measures based on your internal hazard analysis, complying with the EUCAR Hazard Level classifications.

Comprehensive Battery Testing Solutions

Aralab offers an optimized range of battery testing solutions in line with the EUCAR hazard levels, ensuring safe, reliable, and sophisticated testing for energy storage systems. Our battery testing chambers are available in various configurations, from reach-in chambers to walk-in chambers, accommodating multiple temperature ranges to meet diverse testing requirements.

Advanced Safety Equipment by Hazard Level

The TESTA BT chambers feature comprehensive safety systems organized by EUCAR hazard levels. From basic safety features in Levels 0-3 including status indicators and emergency stops, to advanced protection systems in Levels 5-6 featuring fire detection, gas measurement, and explosion pressure relief windows, each chamber is equipped to handle the specific safety requirements of your battery testing applications.

Technical Specifications
EUCAR Hazard Levels Safety Equipment

LEVEL 0-3
  • Status Indicator
  • Security Door Lock
  • Emergency Stop

LEVEL 4
  • Mechanical Door Lock
  • Reversible Pressure Relief

LEVEL 5
  • Fire Detection/Extinguisher (Activated by Temperature or Manually)
  • Optional CO activation (check accessories list)

LEVEL 6
  • Gas Measurement (3 gases – As standard CO, H2, H2S)
  • Additional gases available as accessories
  • Explosion Pressure Relief Window
  • Inertization with N2 including O2 sensor (Cylinder not included)

Chamber Configurations
  • Available from reach-in to walk-in sizes
  • Multiple temperature ranges
  • Standard and tailor-made solutions available
  • Customizable safety measures based on hazard analysis

FAQ - TESTA BT – Battery Testing Chambers – Aralab

What are the different EUCAR hazard levels and their safety requirements?

EUCAR hazard levels range from 0-6, with increasing safety requirements. Levels 0-3 include basic safety features like status indicators and emergency stops. Level 4 adds mechanical door locks and pressure relief. Level 5 incorporates fire detection and extinguisher systems. Level 6 features the most comprehensive safety with gas measurement (CO, H2, H2S), explosion pressure relief windows, and nitrogen inertization systems.

What types of safety equipment are standard with TESTA BT chambers?

Standard safety equipment varies by EUCAR level, starting with status indicators, security door locks, and emergency stops for levels 0-3. Higher levels include mechanical door locks, fire detection systems, gas measurement for three gases (CO, H2, H2S), explosion pressure relief windows, and inertization with N2 including O2 sensors.

Can the chambers be customized for specific testing requirements?

Yes, Aralab offers both standard and tailor-made solutions with emphasis on creating systems that adhere to customers' specific application needs. Each chamber can be equipped with safety measures based on your internal hazard analysis and EUCAR Hazard Level classifications.

What chamber sizes are available for the TESTA BT series?

TESTA BT chambers are available in various configurations from reach-in chambers to walk-in sizes, accommodating multiple temperature ranges to meet diverse testing requirements. Both standard sizes and custom configurations are available.

What gases can be measured with the Level 6 safety equipment?

The Level 6 safety equipment includes gas measurement for three gases as standard: CO (Carbon Monoxide), H2 (Hydrogen), and H2S (Hydrogen Sulfide). Additional gases are available as accessories to meet specific testing requirements.
