PaintChecker mobile LED Blue 591 – ERICHSEN

The PaintChecker Mobile LED Blue 591, designed by Erichsen, is a cutting-edge photothermal measuring device for the non-contact and non-destructive determination of coating thicknesses. Compatible with standards such as DIN EN 15042-2, it is particularly suited for pre-curing measurement of powder coatings on various substrates and can efficiently measure on complex geometries.

It is optimized for metallic substrates such as steel, aluminium, and ceramics. It excels in measuring coating thicknesses up to 250 µm, ensuring accurate and precise assessments on a broad range of materials.

Yes, the PaintChecker Mobile LED Blue 591 is designed with user safety in mind. Its sensor employs eye-safe LEDs for non-contact measurement, allowing for its safe operation during all standard measurement procedures.

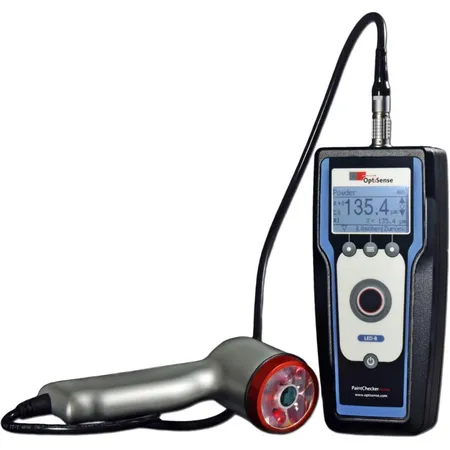

Extremely portable. The device consists of an ergonomically designed sensor connected by a 0.8 m cable to a rugged aluminium controller unit. This compact setup, complemented by rechargeable batteries, makes it effortlessly portable for various on-site measurement needs.

Yes, the PaintChecker boasts geometry-independent measurement capabilities. This makes it adept at accurately assessing coatings on complex shapes including edges, corners, and curved surfaces without compromising on precision.

Each package includes the sensor, controller unit, protective case, reference sample, rechargeable batteries, charger, software for data analysis, and a USB cable, providing a comprehensive solution for coating thickness measurement right out of the box.

Yes, it comes with proprietary software which facilitates easy setting adjustments and data storage. The software, included in the package, is specifically designed to enhance the device's functionality and ensure a smooth user experience.
