Revolutionize Your Coating Thickness Measurements

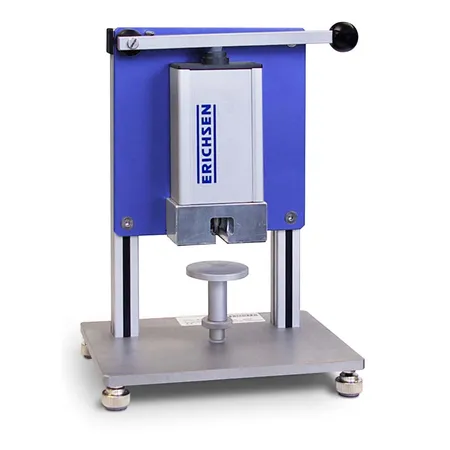

The PAINTXPLORER 548 by Erichsen is designed to significantly advance the application capabilities beyond those of the PAINT BORER 518 MC/518 USB. This innovative device is especially beneficial for sensitive drilling into rigid or brittle materials. By incorporating an advanced rotating/sliding high precision axle-bearing device, the PAINTXPLORER 548 ensures minimal material breakage and chipping, resulting in highly accurate optical measurements even in layers with challenging transitions.

Despite its mobility within the mains cable range, this tabletop unit is a steadfast laboratory equipment. Versatility is a hallmark, with the unit operable by hand or with the included measuring stand. Unlike its predecessors, the PAINTXPLORER 548 offers a separate measuring microscope, available for intricate evaluations such as lacquer damage, corrosion, and pore assessments, contributing to its sleek and manageable design.

The operation mirrors that of the PAINT BORER 518 MC/518 USB but enhances user convenience and measurement reliability. The included drill bits, felt tip pens, and other accessories ensure a comprehensive solution for precise coating thickness measurement across a broad range of substrates and applications.

Technical Specifications
Drive
  • Electric
DT /NDT
  • DT
Substrate
  • Any
Layer Thickness
  • up to 2000 µm
Multiple Coating Ability
  • Yes
Drilling Unit: Dimensions
  • 145 mm x 70 mm x 40 mm (H x W x D)
Drilling Unit: Net weight
  • approx. 600 g
Drilling Stand: Dimensions
  • 280 mm x 190 mm x 120 mm (H x W x D)
Drilling Stand: Net weight
  • approx. 3.2 kg
Measuring Microscope (456-50): Dimensions
  • 105 mm x 130 mm x 40 mm (H x W x D)
Measuring Microscope (456-50): Net weight
  • approx. 150 g
Measuring Microscope (456-50): Power supply
  • battery (9V) 6LR 61
Measuring Microscope (456-50): Scale division
  • 20 µm
Measuring Microscope (456-50): Measuring range
  • 2 mm
Drilling Unit: Mains supply (Plug-in power pack)
  • (100 - 240) VAC, (47 - 63) Hz 18 VDC / 0,8 A
Drilling Unit: Number of revolutions of the drill
  • approx. 500 rpm
Measuring Microscope (456-50): Magnification factor
  • 50

FAQ - PAINTXPLORER 548 – ERICHSEN

What makes PAINTXPLORER 548 different from its predecessors like PAINT BORER 518 MC/518 USB?

The PAINTXPLORER 548 features an advanced rotating/sliding high precision axle-bearing device designed for sensitive drilling into rigid or brittle materials, reducing material breakage and chipping. This improvement ensures highly accurate optical measurements for layers with challenging transitions. It also offers enhanced usability and versatility, including a separate measuring microscope for detailed evaluations, and is designed for both handheld and stand-mounted operation.

What kinds of substrates can the PAINTXPLORER 548 work on?

The PAINTXPLORER 548 is versatile enough to measure coating thickness on any type of substrate, providing flexibility across a broad range of applications. This is facilitated by its electric drive and advanced technology, capable of handling layers up to 2000 µm thick.

Can the PAINTXPLORER 548 measure multiple coatings?

Yes, the PAINTXPLORER 548 has the capability to measure the thickness of multiple coatings. This feature makes it an invaluable tool for detailed and complex evaluations where multiple layers are involved.

Are there any specific features of the measuring microscope provided with PAINTXPLORER 548?

The measuring microscope (456-50) included with the PAINTXPLORER 548 features a magnification factor of 50 and a measuring range of 2 mm. It operates on a 9V battery (6LR 61) and has a scale division of 20 µm, making it suitable for a variety of detailed evaluations including lacquer damage, corrosion, and pore assessments.

What are the dimensions and weight of the PAINTXPLORER 548 and its accessories?

The drilling unit of PAINTXPLORER 548 measures 145 mm x 70 mm x 40 mm (H x W x D) and weighs approximately 600 g. The drilling stand has dimensions of 280 mm x 190 mm x 120 mm (H x W x D) and weighs approximately 3.2 kg. The measuring microscope (456-50) measures 105 mm x 130 mm x 40 mm (H x W x D) and weighs about 150 g.

What is the power supply requirement for the PAINTXPLORER 548?

The drilling unit of PAINTXPLORER 548 requires a mains supply of (100 - 240) VAC, (47 - 63) Hz 18 VDC / 0,8 A through a plug-in power pack. The included measuring microscope (456-50) operates on a 9V battery (6LR 61).

What accessories are included with PAINTXPLORER 548?

The PAINTXPLORER 548 comes with drill bits, felt tip pens, and other accessories to provide a comprehensive solution for precise coating thickness measurement across a wide range of substrates and applications, enhancing its versatility and utility in various professional settings.
