Smart Non-Contact Color Measurement

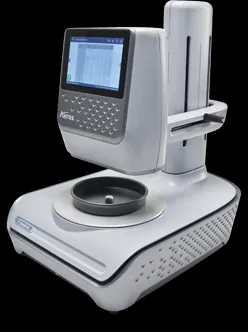

The Aeros Spectrophotometer is engineered to make color measurement of any sample hassle-free. From the auto-height positioning sensor to the large, rotating platform to the durable display and intelligent communication technologies, the Aeros Spectrophotometer was created for the way you work—and the color samples you need to measure.

One-Touch Operation

One touch is all you need to automatically measure 27.5 square inches in 5 seconds, which not only reduces measurement variations between operators but also reduces their learning time. Since it’s a no-contact sensor, you won’t have to waste time on setup or cleanup.

Built-in Connectivity

Focus on sharing the results however you want it: With the built-in all-in-one technology, you can easily print, email, or stream data. The Aeros features USB and Ethernet connectivity for seamless integration with your workflow.

Advanced Measurement Technology

Utilizing dual-beam non-contact reflectance spectrophotometry, the Aeros delivers fast and accurate color measurement results from heavily textured or non-uniform samples. The rotating platter ensures comprehensive sample coverage with 35 measurements per rotation.

Technical Specifications

Measurement

  • Measurement Principle: Dual-beam Non-contact Reflectance Spectrophotometer/Colorimeter
  • Measurement Method: Port Down; Non-Contact; Rotating platter
  • Maximum Sample Height: 140 mm (5.5 in.)
  • Measurement Duration: User selectable (5, 10, 15, 30 seconds)
  • Sampling Rate: 7 measurements per second
  • Measurements per Rotation: 35
  • Area Measured per Rotation: 177.25 cm² (27.5 in²)

Technical

  • Spectral Range: 400 nm - 700 nm
  • Specular Component: Excluded
  • Spectral Resolution: < 3 nm
  • Effective Bandwidth: 10 nm equivalent triangular
  • Reporting Interval: 10 nm
  • Photometric Range: 0 to 150 %
  • Light Source: Full spectrum, Balanced LED system array
  • LED Life: 5 years typical
  • Spectrophotometer/Colorimeter: Sealed optics; 256-element diode array; high resolution concave holographic grating
  • Displayed Height Resolution: 0.1 mm

Performance

  • Inter-Instrument Agreement: ΔE*< 0.30 (Avg) on CCSII (BCRA) Tile Set
  • Colorimetric Repeatability: ΔE*< 0.025 (Max) on white tile

User Interface

  • Data Views: EZ View, Color Data Table, Color Plot, Spectral Data, Spectral Plot, Trend Plot
  • Other Features: Pass/Fail color indication, time and date stamp, auto-naming, auto-saving, data backup and recovery
  • Indices and Metrics: E313 Whiteness Index, Tint, E313 Yellowness Index, D1925 Yellowness Index, Y Brightness, Z%, 457 nm Brightness, Baking Contrast Units, HCCI, SCAA
  • Color Scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ
  • Color Difference Scales: ΔL*a*b*, ΔLab, ΔL*C*h, ΔYxy, ΔXYZ
  • Color Difference Indices: ΔE*, ΔE, ΔE CMC, and ΔE 2000
  • Data Storage: 8 GB (> 1 million data records)
  • Illuminants: A, C, D50, D55, D65, D75, F02, F07, F11, TL84, ULT30, ULT35
  • Observers: 2° and 10°
  • Languages: English, Japanese, and Simplified Chinese
  • Display: Touch screen, High resolution 1280x800
  • External PC Software: Compatible with HunterLab EasyMatch QC and EasyMatch QC-Electronic Records Quality Control Software

Communications I/O

  • USB OTG: Connectivity to printer, keyboard, mouse
  • Front Panel USB: 2.0 bidirectional, data export/import via thumb drive
  • Ethernet RJ45: Print directly to standalone or network printers, Email directly from the instrument, Stream data to LIMS and SPC systems
  • Remote Access Support: Enabled via internet-based support tool

Physical/Electrical

  • Sensor Dimensions:
    • Height: 56 cm (22 in)
    • Width: 38 cm (15 in)
    • Depth: 51 cm (20 in)
    • Weight: 23 kg (50 lbs)
  • Display: Touch screen, high resolution color, 7 in, 1280 x 800
  • Power: Input: 100 to 240 VAC, 47 to 63 Hz to universal power supply @ 24 VDC (3.75A 90W)
  • Operating Environment: 4° to 38°C (40° to 100° F), 10 % to 85 % RH, noncondensing
  • Storage Environment: -20° to 65°C (-5° to 150° F), 10 % to 90 % RH, noncondensing
  • System Components:
    • Calibrated white tile (NIST Certificate of Traceability)
    • Black glass standard
    • Green diagnostic tile
    • Standards Box
    • 15.2 cm (6 in) pan / 2.54 cm (1 in) Depth
    • 30.5 cm (12 in) pan / 2.54 cm (1 in) Depth
    • 100V - 240V universal power supply
    • Aeros Quick Start Guide
    • Aeros User Guide on CD

FAQ - Aeros Spectrophotometer – HunterLab

What is the Aeros Spectrophotometer used for?

The Aeros Spectrophotometer is used for fast and accurate color measurement of any sample, including heavily textured or non-uniform samples. It's ideal for quality control applications where non-contact measurement is preferred to avoid sample damage.

How does the non-contact measurement work?

The Aeros uses dual-beam non-contact reflectance spectrophotometry with a rotating platter. It can measure up to 140 mm sample height and automatically covers 27.5 square inches in just 5 seconds, taking 35 measurements per rotation for comprehensive sample analysis.

What connectivity options does the Aeros offer?

The Aeros features comprehensive connectivity including USB OTG for printers and peripherals, front panel USB 2.0 for data export/import, and Ethernet RJ45 for network printing, direct emailing, and streaming data to LIMS and SPC systems.

What is the measurement accuracy of the Aeros?

The Aeros delivers excellent measurement performance with inter-instrument agreement of ΔE*< 0.30 (Avg) on CCSII (BCRA) Tile Set and colorimetric repeatability of ΔE*< 0.025 (Max) on white tile, ensuring reliable and consistent results.

What are the key benefits of the Aeros compared to contact instruments?

The Aeros eliminates setup and cleanup time, reduces measurement variations between operators, and prevents sample damage. Its one-touch operation makes it faster and easier to use while providing comprehensive sample coverage that contact instruments cannot achieve.

What software compatibility does the Aeros have?

The Aeros is compatible with HunterLab EasyMatch QC and EasyMatch QC-Electronic Records Quality Control Software. It also features built-in data analysis capabilities with multiple viewing options including spectral plots, color data tables, and trend analysis.
