Agera – HunterLab

Agera – HunterLab

Professional Color and Gloss Measurement

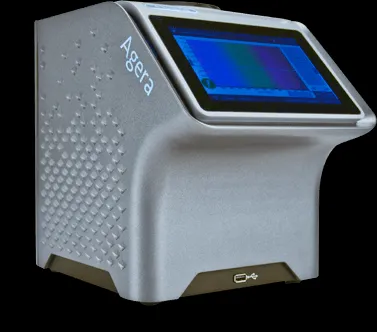

Agera spectrophotometer offers all-in-one functionality with simultaneous measurement of color in reflectance, 60 degree gloss measurement, image capture and integrated QC software. This colorimeter with circular 0°/45° geometry simulates human color perception according to the CIE standard valence system in a matter of seconds with absolute reliability and safety.

Versatile Applications

Suitable for plastics, granulates, powders, adhesives, cosmetics, textiles, pharmaceutical and bio-science products, foods and liquids. The Agera is the successor to the best-selling LabScan XE.

Key Features

With 0°/45° geometry that corresponds very precisely to the color impression that the human eye has of the sample. The integrated camera helps to place the sample precisely and to save a photo with the measurement data. EasyMatch QC Essentials quality control software is integrated into the device and provides all the required color indices and metrics.

Advanced Technology

With an illumination range of 360-700 nm, the Agera is also suitable for measuring optically brightened samples. The stand-alone device with a small footprint and touchscreen is easy to operate and provides safety thanks to long-lasting LED technology.

Technical Specifications
Technical data
  • Measurement PrincipleDual-beam Reflectance Spectrophotometer / Gloss meter
  • Geometry0°/45°c (circumferential) ASTM E1164
  • Read Time< 3 sec.
  • Gloss Geometry60-degree (60º)
  • Image CaptureHigh-resolution, D65 illuminated, 0°/45° image viewing
  • Port OpeningExtra Large: 53.97 mm, Large: 28.57 mm, Medium: 17.47 mm
  • Area Measured (Color)Extra Large: 50.8 mm (2 in), Large: 25.4 mm (1 in), Medium: 15.89 mm (5/8 in)
  • Area Measured (Gloss)8 mm (5/16 in)
  • Illumination Range360 nm - 700 nm
  • Spectral Range400 nm - 700 nm
  • Spectral Resolution< 3 nm
  • Effective Bandwidth10 nm equivalent triangular
  • Photometric Range0 to 150 %
  • Light SourceFull spectrum, balanced LED array
  • LED Life5 years typical
  • Repeatability (Color)ΔE 2000 < 0.03 CIE L*a*b* (Max) on white tile
  • Repeatability (Gloss)0 - 100 GU: ≤0.1 GU
  • Data Storage8 GB (> 1 million data records with images)
  • DisplayCapacitive touch screen, high-resolution color, 17.8 cm (7 in), 1280 x 800
  • DimensionsHeight: 28 cm (11 in), Width: 22 cm (8.75 in), Depth: 31 cm (12.25 in)
  • Weight6.35 kg (14 lb)
  • PowerInput: 100 to 240 VAC, 47 to 63 Hz to universal power supply @ 24 VDC (3.75A 90W)
  • Operating Environment4° to 38° C (40° to 100° F), 10 % to 85 % RH, noncondensing
  • Storage Environment-20° to 65° C (-5° to 150° F), 10 % to 90 % RH, noncondensing
  • CommunicationsUSB OTG, Front Panel USB 2.0, Ethernet RJ45, External Inputs
  • Color ScalesCIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ
  • IlluminantsA, C, D50, D55, D65, D75, F02, F07, F11

FAQ - Agera – HunterLab

What is the Agera used for?

The Agera by HunterLab is used for professional color and gloss measurement applications. It simultaneously measures color in reflectance, 60 degree gloss measurement, and captures images in one simple measurement, making it ideal for quality control in various industries.

What industries can benefit from the Agera spectrophotometer?

The Agera is suitable for a wide range of applications including plastics, granulates, powders, adhesives, cosmetics, textiles, pharmaceutical and bio-science products, foods and liquids. Its versatility makes it perfect for laboratory and production environments.

What makes the Agera's measurement geometry special?

The Agera uses 0°/45° geometry that corresponds very precisely to the color impression that the human eye has of the sample. This geometry according to DIN standards ensures accurate color perception simulation according to the CIE standard valence system.

Does the Agera include integrated software?

Yes, the EasyMatch QC Essentials quality control software is integrated into the device and provides all the required color indices and metrics. The device also features a high-resolution touchscreen for easy operation and smart user interface for data transfer to existing LIMS or SPC systems.

What are the key technical specifications of the Agera?

The Agera features dual-beam reflectance spectrophotometer technology with measuring time less than 3 seconds, illumination range of 360-700 nm, 8 GB memory capacity for over 1 million measurements with images, and 5-year LED life. It includes a high-resolution touchscreen and weighs 6.35 kg.

Can the Agera measure UV-brightened samples?

Yes, with an illumination range of 360-700 nm, the Agera is also suitable for measuring optically brightened samples. It features automatic UV control that can be switched on with manufacturer or user calibration and automated comparative data output.
