High-Performance Color Measurement

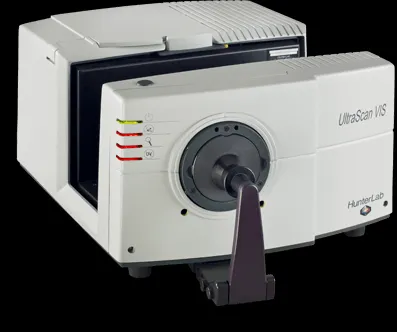

The UltraScan VIS is a high-performance color measurement benchtop spectrophotometer that measures the complete CIE recommended spectral range of 360 – 780 nm. This versatile instrument measures opaque, transparent, and translucent solids and liquids with exceptional precision, making it ideal for production and laboratory applications including raw material inspection, finished product evaluation, and color analysis method development.

Advanced Measurement Capabilities

The UltraScan VIS easily measures both reflected and transmitted color as well as transmission haze, meeting CIE, ASTM and USP guidelines for accurate color measurement. Utilizing diffuse/8° geometry with automated specular component inclusion/exclusion, this instrument ensures reliable and consistent results. For transmission measurement, the robust CIE-conforming sphere instrument (TTRAN Total Transmission mode) effectively negates the effects of minor scattering typically found in transparent samples.

Exceptional Precision and Reliability

With exceptional inter-instrument agreement and long-term stability, you can be confident that differences between measurements are due to actual product color changes, not instrument variability. Materials on the borderline of accepted tolerances will not be unnecessarily rejected. The instrument features dual 256 element diode arrays with high resolution, concave holographic grating and includes EasyMatch QC software for comprehensive color analysis.

Versatile Measurement Options

The UltraScan VIS offers both Large Area View (LAV) and Small Area View (SAV) measurement options with automatic lens switching. The large transmission compartment is open on three sides for easy sample handling, and the instrument includes automated UV calibration and control with optional cutoff filters.

Technical Specifications
Technical Specifications
  • Measurement PrincipleDual-beam benchtop spectrophotometer/colorimeter
  • GeometryDiffuse d/8° reflectance, d/8° total transmission, d/0° regular transmission
  • Spectral Range360 nm - 780 nm full CIE visible range
  • Wavelength Resolution< 2 nm
  • Effective Bandwidth10 nm equivalent triangular
  • Reporting Interval10 nm
  • Photometric Range0 to 150 %
  • Photometric Resolution0.003 % (0.01 % reported)
  • Sphere Diameter152 mm (6 in.)
  • Light SourcePulsed Xenon lamp, filtered to approximate D65 daylight
  • Measurement Time< 5 seconds
  • Colorimetric Repeatability< 0.03 ∆E* CIE L*a*b* on white tile
  • Inter-instrument Agreement< 0.15 ∆E* CIE L*a*b* (Avg) on BCRA II Tile Set
  • Dimensions27.9 cm H × 42.0 cm W × 49.8 cm D (11" × 16.5" × 19.6")
  • Weight20.4 kg (45 lbs)
  • Power Requirements100 to 240 VAC, 47 to 63 Hz, 60 watts passive, 120 watts maximum
  • Operating Environment10° to 40°C (50° to 104° F), 10 % to 90 % RH, noncondensing

FAQ - UltraScan VIS Spectrophotometer – HunterLab

What is the UltraScan VIS used for?

The UltraScan VIS is used for high-performance color measurement of opaque, transparent, and translucent solids and liquids. It's ideal for production and laboratory applications including raw material inspection, finished product evaluation, and color analysis method development across various industries.

What spectral range does the UltraScan VIS cover?

The UltraScan VIS covers the complete CIE recommended spectral range of 360 – 780 nm, which encompasses the full range of human color perception. This makes it suitable for comprehensive color analysis across the visible spectrum.

How accurate and repeatable is the UltraScan VIS?

The UltraScan VIS offers exceptional accuracy with colorimetric repeatability of < 0.03 ∆E* CIE L*a*b* on white tile and inter-instrument agreement of < 0.15 ∆E* CIE L*a*b* average on BCRA II Tile Set. This ensures reliable and consistent measurements across different instruments.

What measurement modes does the UltraScan VIS support?

The UltraScan VIS supports both reflectance and transmittance measurements with automated specular component inclusion/exclusion. It features Large Area View (LAV) and Small Area View (SAV) options with automatic lens switching, making it versatile for different sample sizes and types.

What software is included with the UltraScan VIS?

The UltraScan VIS includes EasyMatch QC software for comprehensive color analysis and quality control. The instrument also comes with various calibration tiles, accessories, and connection cables as standard equipment.

What standards does the UltraScan VIS comply with?

The UltraScan VIS meets CIE, ASTM and USP guidelines for accurate color measurement. For reflectance it complies with CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, and JIS Z 8722 Condition C. For transmittance it follows CIE 15:2004, ASTM E1164, DIN 5033 and JIS Z 8722 standards.
