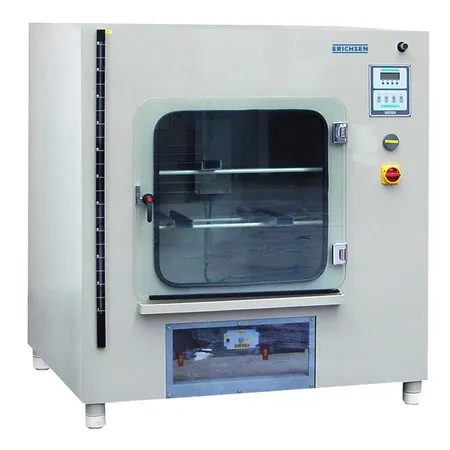

CORROTHERM 610 – Corrosion Test Chamber

The CORROTHERM 610 series offers extremely compact, space-saving corrosion testers with all-plastic construction (polypropylene). These units contain all necessary equipment for carrying out the most common spray mist and condensation water tests according to international standards including DIN 50 021, DIN EN ISO 6270-2, DIN EN ISO 7253, ISO 11503, ASTM B 117, and ASTM B 368 T “CASS TEST”.

Available Sizes:

  • 400L version (Order: 01830131): 400 litre effective volume with 100 litre spray solution capacity
  • 1000L version (Order: 01830331): 1000 litre effective volume with 280 litre spray solution capacity

Key Features:

  • All-plastic construction (polypropylene) for durability
  • Front door for simple operations and easy access
  • Spray nozzle on rear wall for optimal space utilization
  • Internal storage tank for unsupervised weekend operation
  • Manual operation with clearly arranged buttons
  • Eye-level control buttons with temperature display and time switch
  • Automatic switch-off function after pre-programmed test time

Purpose and Applications:

Essential for testing ferrous and non-ferrous metals against humidity, acids, solutions, and gases. Critical for quality control and investigating weak areas in protective coatings and surface treatments.

Standards Compliance:

Meets ISO 9227, DIN EN ISO 9227 (SS, ESS, CASS), DIN EN ISO 6270-2 CH, DIN 50958, DIN 55991, ISO 11503, ASTM D2247, BS 3900 Part F2, ASTM B117, and D171058.

Technical Specifications
Technical Data - 400L Version:
  • Effective Volume: 400l
  • Order Number: 01830131
  • Net weight: approx. 210 kg
  • Dimensions (W x D x H): 1320 x 720 x 1460 mm
  • Power supply: 230 V/AC, 50/60 Hz
  • Power consumption: approx. 2100 VA
  • Test temperature range: ambient to +50°C
  • Capacity of test panels: approx. 80
  • Salt solution capacity: approx. 100 l
  • Interior dimensions (without dome): 800 x 710 x 800 mm
  • Compressed air supply: 4-6 bar, approx. 5-8 Nm³/h
  • Water supply: 2-4 bar (demineralised), approx. 1l/h
  • Specimen holders included: 3
Technical Data - 1000L Version:
  • Effective Volume: 1000l
  • Order Number: 01830331
  • Net weight: approx. 300 kg
  • Dimensions (W x D x H): 1640 x 820 x 1760 mm
  • Power supply: 230 V/AC, 50/60 Hz
  • Power consumption: approx. 3500 VA
  • Test temperature range: ambient to +50°C
  • Capacity of test panels: approx. 150
  • Salt solution capacity: approx. 280 l
  • Interior dimensions (without dome): 1100 x 800 x 1100 mm
  • Compressed air supply: 4-6 bar, approx. 5-8 Nm³/h
  • Water supply: 2-4 bar (demineralised), approx. 1l/h
  • Specimen holders included: 4

FAQ - CORROTHERM 610 – ERICHSEN

What are the main differences between the 400L and 1000L versions?

The 400L version (01830131) has a smaller footprint with 80 test panel capacity and 100L spray solution capacity, while the 1000L version (01830331) offers 150 test panel capacity with 280L spray solution capacity for larger testing requirements.

What standards does the CORROTHERM 610 comply with?

The CORROTHERM 610 meets all major international standards including ISO 9227, DIN EN ISO 9227 (SS, ESS, CASS), DIN EN ISO 6270-2 CH, DIN 50958, DIN 55991, ISO 11503, ASTM D2247, BS 3900 Part F2, ASTM B117, and D171058.

Can the unit operate unattended?

Yes, both versions have internal storage tanks (100L for 400L version, 280L for 1000L version) that enable weekend operation without supervision.

What type of tests can be performed?

The CORROTHERM 610 can perform condensation tests and salt spray (fog) tests according to international standards for both ferrous and non-ferrous metals.
