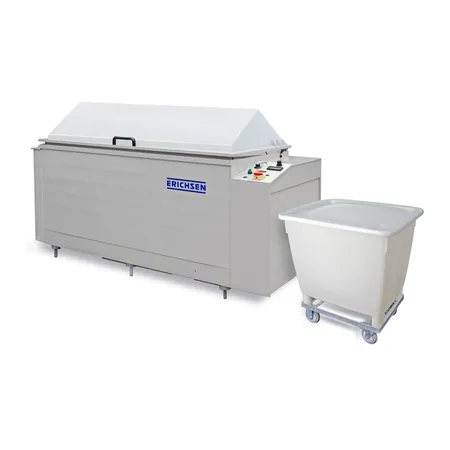

Comprehensive Corrosion Testing Solutions – Model 606 Basic Series
The Model 606-Basic series represents state-of-the-art corrosion testing instruments available in multiple capacities to meet diverse testing requirements. These compact instruments feature modular design and are manufactured from impact-resistant, eco-friendly polypropylene material for performing salt spray and condensation tests.
Available Capacities:
- 300-Basic (Order: 03250131) – 300-litre effective volume with integrated 125l salt solution tank
- 400-Basic (Order: 02920131) – 400-litre effective volume with external 200l salt solution tank
- 1000-Basic (Order: 02920231) – 1000-litre effective volume with external 200l salt solution tank
- 2000-Basic (Order: 24990031) – 2000-litre effective volume with external 200l salt solution tank
Key Features
Each unit consists of a test chamber, built-in control unit, and storage tank for salt solution. The control unit is equipped with necessary control instruments, and the large, transparent access door allows easy mounting of specimens using the delivered sample rods. A dosing pump provides infinitely variable adjustment for optimum spray solution consumption.
Purpose and Application
Ferrous and non-ferrous metals are continuously attacked by humidity, acids, solutions, and gases. Proper surface protection selection is vital, and materials intended to prevent corrosion must be tested to avoid failures. The comparative quality control during production is increasingly important, utilizing spray vapour tests with various salt solutions and condensation water climates.
Test Principle
Aggressive solutions are converted into vapour mist according to standard test procedures. These vapours surround specimens in the test chamber either continuously or cyclically. Corrosion resistance is established based on time differences before first corrosive effects appear.
