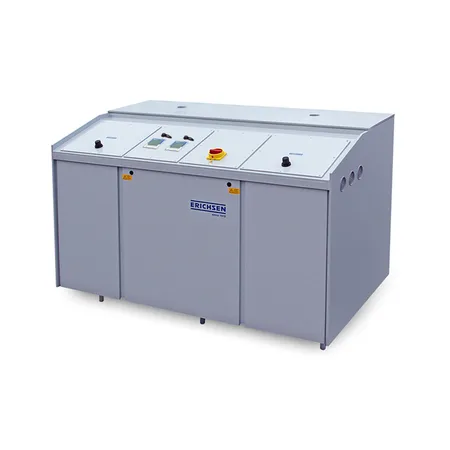

Advanced Modular Corrosion Testing Systems – Model 606 Modular Series
The Model 606 Modular Series offers sophisticated corrosion testing solutions with integrated touch control panels for enhanced operation and monitoring. These compact systems are designed for salt spray tests according to all established standards.
Available Configurations:
- 606-1 (Order: 20560031) – Single test chamber system with 400l/1000l/2000l capacity options
- 606-2 (Order: 20570031) – Dual test chamber system with 400l/1000l/2000l capacity options per chamber
Advanced Control System
The integrated touch control panel enables easy operation and monitoring, containing necessary regulation and control instruments for temperature control in test chambers, humidifier temperature, spray pressure, and test duration. This allows users to carry out tests according to standard specifications.
Flexible Chamber Options
Various test chamber sizes with volumes of 400l, 1000l, or 2000l can be selected based on requirements. Test chambers (400l and 1000l) are available in both circular and rectangular designs, providing maximum flexibility for different testing needs.
Purpose and Application
These systems address the continuous attack on ferrous and non-ferrous metals by humidity, acids, solutions, and gases. Proper surface protection selection is crucial, and materials intended to prevent corrosion must be thoroughly tested. The modular design supports comparative quality control during production using spray vapour tests with various salt solutions and condensation water climates.
Test Principle
Aggressive solutions are converted into vapour mist according to standardized test procedures. These vapours surround specimens in test chambers either continuously or cyclically, allowing determination of corrosion resistance based on time differences before first corrosive effects appear.
