Drying Time Tester Model 415 – ERICHSEN

Drying Time Tester Model 415 – ERICHSEN

Advanced Coating Dryness Determination

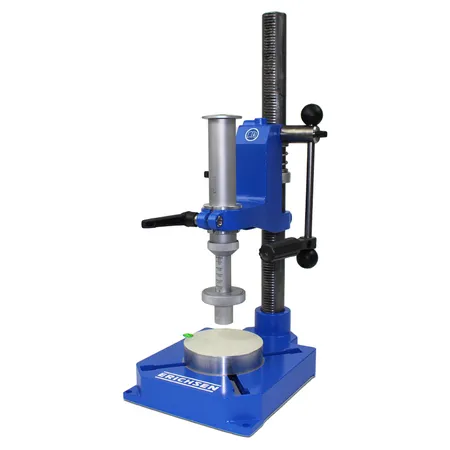

The Model 415 Drying Time Tester by Erichsen is engineered for precision in determining the dryness level of coatings, employing the ISO 9117 standard through the modified Bandow-Wolff method. This tester features a light metal cylinder on a stand, with an integrated compression spring capable of exerting up to 250 N, making it an ideal choice for various industrial applications.

Efficient and Versatile Testing Process

Designed to accommodate varying thicknesses of sample coatings, the Model 415 includes a lever mechanism for easy adjustment and application of force. It comes with load weights for standard and customized tests, alongside a cylindrical soft rubber disk to ensure even pressure distribution.

Diverse Applications and Detailed Analysis

From light touches with ballotini to heavier loads for advanced dryness stages, the Model 415 adapts to a wide range of testing needs. The unit allows for precise testing pressure adjustments, catering to dryness degrees from 1 to 7, thus offering comprehensive analytical capabilities.

Included in Your Purchase

Every Model 415 unit is equipped with essential components for immediate use, including individual weights, soft rubber disks, paper disks, and a ballotini dispenser, ensuring a holistic solution for paint and coating dryness testing.

Technical Specifications
Drive
  • Manuel
Dimensions
  • Width: approx. 150 mm
  • Depth: approx. 300 mm
  • Height: approx. 440 mm
Net weight
  • approx. 4.5 kg
Testing Force
  • bis 250 N

FAQ - Drying Time Tester Model 415 – ERICHSEN

What standard does the Model 415 Drying Time Tester adhere to?

The Model 415 Drying Time Tester is designed to determine the dryness level of coatings following the ISO 9117 standard, through the modified Bandow-Wolff method. This ensures high precision and reliability in testing.

Can the Model 415 handle different thicknesses of sample coatings?

Yes, the Model 415 is equipped with a lever mechanism that allows for easy adjustment and application of force to accommodate varying thicknesses of sample coatings. This makes it a versatile tool for numerous testing scenarios.

What kind of testing force does the Model 415 apply?

The Model 415 has an integrated compression spring capable of exerting up to 250 N. This robust testing force can be applied to a range of coatings to determine their level of dryness accurately.

Are there any additional tools or accessories included with the Model 415?

Yes, each Model 415 unit comes with essential components for immediate use. These include individual weights for standard and customized tests, soft rubber disks for even pressure distribution, paper disks, and a ballotini dispenser for a comprehensive solution to paint and coating dryness testing.

What are the physical dimensions and weight of the Model 415?

The Model 415 Drying Time Tester measures approximately 150 mm in width, 300 mm in depth, and stands 440 mm tall. It has a net weight of around 4.5 kg, making it both sturdy and relatively portable for industrial use.

How does the Model 415 adjust testing pressure for different dryness degrees?

The unit is designed to allow precise adjustments of testing pressure, catering to dryness degrees from 1 to 7. This level of control ensures that users can accurately assess the dryness stage of various coatings, from light touches with ballotini to heavier loads for more advanced stages.

Is manual operation required for the Model 415, or is it automated?

The Model 415 Drying Time Tester operates manually. This gives users direct control over the testing process, ensuring that specific needs and conditions can be met with ease.
