Highly Efficient Through-Dry Testing

Designed specifically for the rigorous analysis of paints, lacquers, and similar coatings, the Through-dry Tester Model 416 offers unparalleled precision in assessing the through-dry state. Adhering to ISO 9117 and EN 29117 standards, it becomes an indispensable tool in quality control laboratories. By utilizing a test plunger, faced with nylon fabric and charged with a predefined weight, it discerns the readiness of coating surfaces with accuracy and efficiency.

Innovative Design for Accurate Results

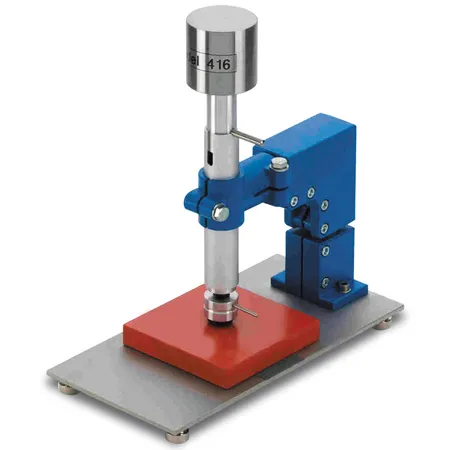

The instrument features a specimen table and a support stand that meticulously guides a weighted plunger vertically. The unique design, incorporating a ball-and-socket joint, ensures uniform pressure is applied across the test surface, guaranteeing repeatable results. Equipped with a rubber sheet of specific hardness and a monofil nylon fabric, it is crafted to meet the stringent requirements set forth by ISO 48 for the determination of IRHD hardness.

Optimized for User Convenience

Understanding the importance of an effortless setup, the Through-dry Tester Model 416 comes with an easy-to-use leveling system, facilitated by the included box level, for achieving the precise horizontal alignment necessary for accurate test results. The process of nylon fabric renewal before each test underscores the device’s commitment to maintaining the integrity of data accuracy.

Technical Specifications
Drive
  • Manuel
Dimensions
  • Length: approx. 150 mm
  • Width: approx. 300 mm
  • Height: approx. 305 mm
Weight, net
  • approx. 4.5 kg

FAQ - Through-dry Tester Model 416 – ERICHSEN

What is the purpose of the Through-dry Tester Model 416?

The Through-dry Tester Model 416 is designed specifically for the analysis of paints, lacquers, and similar coatings. It offers precise assessment of the through-dry state, adhering to ISO 9117 and EN 29117 standards, making it essential for quality control laboratories.

How does the Through-dry Tester Model 416 ensure accurate results?

This instrument features a design that ensures uniform pressure across the test surface thanks to its ball-and-socket joint. This, combined with a specific weighted plunger and a specimen table, guarantees repeatable results in line with stringent industry standards.

Is the Through-dry Tester Model 416 difficult to set up?

No, the Through-dry Tester Model 416 has an easy-to-use leveling system which includes a box level to ensure precise horizontal alignment for accurate testing. Its design emphasizes user convenience and, it streamlines the process of preparing for each test.

What are the dimensions and weight of the Through-dry Tester Model 416?

The Through-dry Tester Model 416 measures approximately 150 mm in length, 300 mm in width, and 305 mm in height. It weighs around 4.5 kg, making it portable yet sturdy for rigorous testing needs.

Does it require electricity to operate?

No, the Through-dry Tester Model 416 is manually operated. This makes it convenient for use in various settings without the need for electrical power, enhancing its versatility and ease of use.

How do I maintain the accuracy of the test results with the Through-dry Tester Model 416?

Maintaining the accuracy of test results involves renewing the nylon fabric on the test plunger before each test, as per the device's design. This ensures that the surface in contact with the coatings is always uniform and clean, preserving the integrity of data accuracy.

Is the Through-dry Tester Model 416 compliant with international standards?

Yes, the Through-dry Tester Model 416 meets the requirements of ISO 9117 for drying tests and EN 29117 standards. It also complies with ISO 48 for the determination of IRHD hardness, showcasing its compliance with international quality standards.
