Erichsen Hydraulic Load Cells: Precision in Force Measurement
ERICHSEN hydraulic load cells are designed for precision and ease, providing a straightforward and cost-efficient method for measuring forces. Utilizing the hydraulic force transmission technique, these devices capture pressures exerted on a transducer piston and display the measurements instantaneously on a Newton-scale unit.
Primarily employed in static applications, ERICHSEN’s hydraulic load cells ensure that the force duration relative to the rated load is consistently maintained. The robust design includes shock load protection by employing throttles, safeguarding the pressure gauge from rapid force fluctuations. Constructed from durable stainless steel, these load cells are crafted for sustainability and uninterrupted operation in diverse environments.
Key Features and Applications

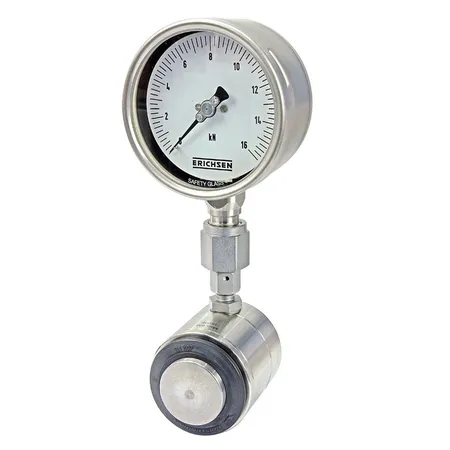

Model 833 series load cells are specifically engineered for integration into various machines, systems, and installations, highlighting their versatility. A distinctive feature is the precision dial gauge equipped with zero offset compensation and a large 100mm diameter, enhancing readability and accuracy. Through compatible accessories, measurements can be remotely displayed or transmitted to the PHYSIMETER® 906 MC-E and 906 USB via a pressure transducer.
The Model 833 comes in two versions: the basic “A” version with a direct connection to the load cell and the advanced “B” version, which utilizes a high-pressure hose or capillary tube for connectivity to the pressure gauge. Each cell is standard equipped with a tube throttle and accompanied by a Manufacturer’s Test Certificate M.
