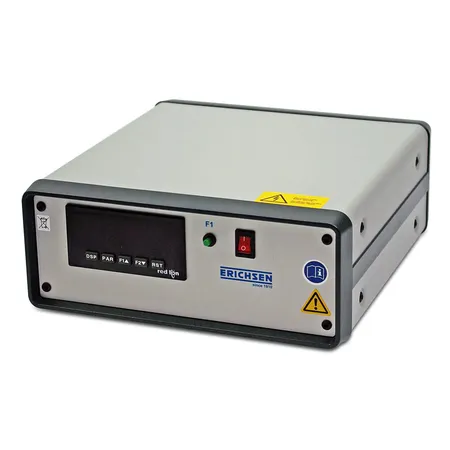

Model 975 AP – ERICHSEN

The Model 975 AP is designed to measure and display forces with high accuracy and efficiency. It is compatible with ERICHSEN's force transducers based on wire strain gauge technology, making it suitable for a wide range of applications across various sectors.

This instrument is designed with ease of use in mind. Its front panel features a clear LED digital display and an illuminated mains switch for enhanced visibility. With its user-friendly design, measuring forces is a hassle-free process, enabling rapid readings without compromising on accuracy.

The Model 975 AP includes several notable features such as a durable aluminum housing, a main-powered measuring and display electronic system, a 7-pin socket for easy disconnection of the force transducer, easy-to-access fuses, and a peak value memory for capturing minimum and maximum readings.

Yes, the Model 975 AP can be equipped with additional optional features such as two infinitely adjustable limit value outputs, an exit hub for analogue outputs, and a unidirectional RS232 or RS422 serial interface to extend its applicability for monitoring, documentation, and analysis purposes.

The Model 975 AP boasts a range of technical specifications including a weight of approximately 2.2 kg, a 4 1/2 digit LED display, dimensions of 255 x 270 x 110 mm, a power supply requirement of 100-250 V / 0,05 A, and a temperature stability of 0.05 % / °C, among others.

Yes, the Model 975 AP is designed as a portable instrument, making it convenient to use in various locations without the need for permanent installation.

The Model 975 AP ensures high measurement accuracy through its design and technical capabilities, with a measuring uncertainty of +/- 0.1% of the measured value and +/- 0.05% of the full scale, along with a measuring rate of 10 measurements per second.
