Optimized Product Overview

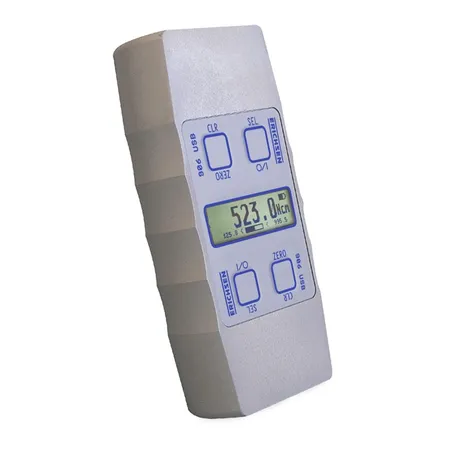

Introducing the PHYSIMETER® 906 USB, a state-of-the-art measuring device from Erichsen, designed for precision recording of mechanical variables using strain gauge sensors. This versatile instrument comes in two variants: one with an integrated force transducer and another ready to be configured with an external sensor, catering to a variety of industrial applications. Powered by three micro-batteries (type LR03) or an alternate plug-in power supply, it ensures uninterrupted performance. The PHYSIMETER® offers seamless data transfer to PCs via a USB interface, enhancing operational efficiency. Complementing the hardware is the PHYSISOFT 906 USB software, available for free download, providing an intuitive interface for measurement analysis and evaluation.

Included in Deliverables

Each PHYSIMETER® 906 USB measuring system comes equipped with a 20 N integrated force transducer, a 1.5 m USB cable, a power supply unit complete with 4 adapters, a set of batteries, a durable plastic case, and a manufacturer’s test certificate M, ensuring you have everything needed for immediate operation right out of the box.

Technical Specifications
Technical data
  • Weight: approx. 500 g
  • Accuracy: 0.2 % of the final value
  • Interface: USB
  • Peak memory: max. and min. values
  • Digit height: 10 mm
  • Running amps: approx. 130 mA (sensor with measuring bridge of 1000 ohms) approx. 150 mA (sensor with measuring bridge 350 ohms)
  • Testing Force: 20 N
  • External supply: plug-in power pack 115 V/230 V\\; 50/60 Hz, alternatively PC with USB cable
  • Measured Value 1: Force
  • Battery operation: alkaline battery type LR03\\; 3 pcs\\; 1400 mA approx. 8 h (sensor with measuring bridge of 1000 ohms) approx. 5 h (sensor with measuring bridge of 350 ohms)
  • Load introduction: female thread M6
  • Overload capacity: <10% of nominal force
  • Display resolution: ≥1000 pieces (from 10% of measuring range)
  • Effective Direction: Tension/Compression
  • Measuring Principle: DMS
  • Operating temperature: +5 °C bis +35 °C
  • Reference temperature: (21 ± 2) °C
  • Dimensions (L x W x H): 150 x 69 x 33 mm (without load introduction pivot of the sensor)
  • Fixing bore in the housing: 2 x M6 (distance 35 mm)
  • Display rate for mean value: approx. 2 Hz
  • Sampling rate for peak value: approx. 1 kHz

FAQ - PHYSIMETER® 906 USB – ERICHSEN

What types of measurements can the PHYSIMETER® 906 USB perform?

The PHYSIMETER® 906 USB is meticulously engineered for precision recording of mechanical variables using strain gauge sensors. It is ideal for measuring force, with the included software facilitating comprehensive analysis and evaluation of the measured data.

Does the PHYSIMETER® 906 USB come with everything needed to start measuring immediately?

Yes, each PHYSIMETER® 906 USB measuring system is supplied with a 20 N integrated force transducer, a 1.5 m USB cable, a power supply unit with 4 adapters, a set of batteries, a durable plastic case, and a manufacturer's test certificate M, ensuring you have all necessary items for immediate setup and operation.

Can the PHYSIMETER® 906 USB be used with external sensors?

Absolutely, the PHYSIMETER® 906 USB is available in a variant that is ready to be configured with external strain gauge sensors, providing flexibility for a wide range of industrial applications.

How does the PHYSIMETER® transfer data to PCs?

Data transfer from the PHYSIMETER® 906 USB to PCs is streamlined via a USB interface, ensuring seamless communication for data analysis and evaluation with the companion PHYSISOFT 906 USB software.

What is the power source for the PHYSIMETER® 906 USB?

The PHYSIMETER® 906 USB can be powered by three micro-batteries (type LR03) for approximately 5 to 8 hours, depending on the sensor's measuring bridge, or by an alternate plug-in power supply for continuous operation. This versatility ensures reliable performance across a variety of settings and applications.

How accurate is the PHYSIMETER® 906 USB?

The PHYSIMETER® 906 USB boasts an accuracy of 0.2% of the final value, illustrating its ability to provide precise and reliable measurements crucial for industrial applications.

Is the software for the PHYSIMETER® 906 USB available for free?

Yes, the PHYSISOFT 906 USB software, featuring an intuitive interface for easy measurement analysis and evaluation, is available for free download, complementing the PHYSIMETER® 906 USB hardware.
