Robust Mechanical Force Measurement for Industry Applications
The Erichsen Series 835 force measuring instruments mark a significant advancement in the field of static pressure and tensile force measurement. Engineered for durability, these mechanical devices shine in environments where accurate temporary force determination is required without the need for complex measurement techniques. Their slender design of force application points is a standout feature, enabling versatile utility in constrained spaces where alternative measuring tools falter due to their larger size.
Uniquely designed, the force transducer of the Series 835 is perfectly adapted for specialized applications such as measuring and regulating electrode pressures in spot welding operations.
Designed for Versatility and Precision

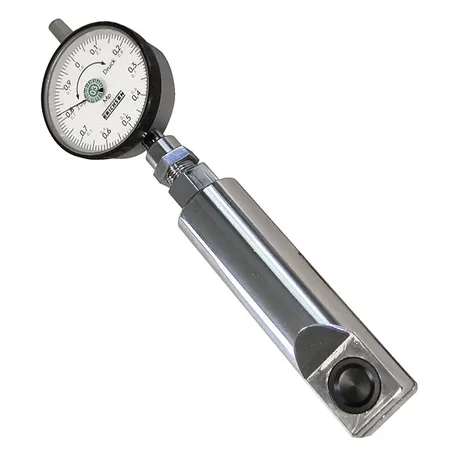

Actuation by pressure or tensile forces induces a deformation, triggering a precision-ground measuring needle to traverse. This action engages a dial gauge indicator, providing clockwise readings for pressure forces and counter-clockwise for tensile forces. Beyond standard applications, custom versions can address specific needs, including the measurement of tensile force in through-running wires or incorporation with tension shackles for the erection of overhead lines to meet exact tensile strain rates.
Each Series 835 point force transducer is delivered with a 500 N capacity and includes a Manufacturer’s Test Certificate M, affirming its precision and quality.
