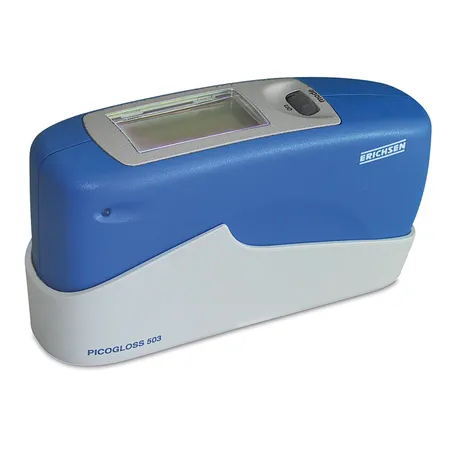

Complete Gloss Analysis with PICOGLOSS 503
The PICOGLOSS 503 represents the pinnacle of portable gloss measurement technology, offering comprehensive three-angle measurement capabilities in a single compact instrument. With measuring geometries of 20°, 60°, and 85°, this advanced gloss meter provides standardized measurements across all three gloss ranges: high gloss, medium gloss, and low gloss, making it the ultimate universal solution for professional gloss assessment.
Advanced Three-Angle Technology
Designed for standardized measurements in accordance with DIN, ISO, ASTM, BS, and JIS standards, the PICOGLOSS 503 automatically adapts to different surface types and gloss levels. The instrument features automatic mirror-gloss switching for highly reflective surfaces such as metallic or chrome-plated materials, with measurement ranges extending up to 2000 GU at 20°, 1000 GU at 60°, and 160 GU at 85°.
Professional Data Management
The device features a color display with multi-language menu support (English, German, French, Spanish, Italian, Japanese, Portuguese, and Russian) and scroll wheel navigation for intuitive operation. Advanced statistical analysis capabilities allow for 2-99 measurements per specimen with comprehensive evaluation including pass/fail tolerance checking against stored references.
Enhanced Measurement Features
The PICOGLOSS 503 includes continuous measurement mode, automatic calibration checking, and extensive memory capacity for 999 measurements across 50 storage areas. The integrated USB interface enables seamless data transfer and PC connectivity, while the smart-lab Gloss software provides comprehensive analysis and reporting capabilities.
