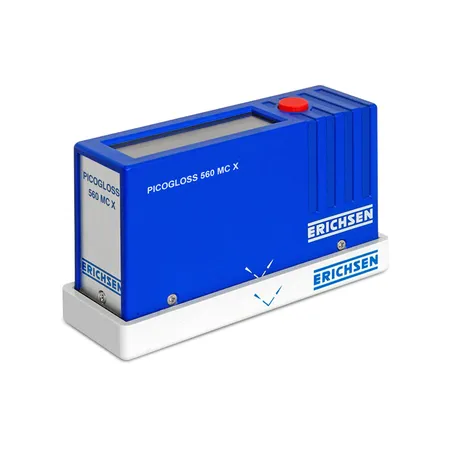

Gloss Meter PICOGLOSS 560 MC-X – ERICHSEN

Enhancing Surface Quality Control with PICOGLOSS 560 MC-X

In today’s competitive industrial landscape, achieving consistent surface quality in materials such as papers, plastics, metals, or wood is paramount. The PICOGLOSS 560 MC-X Gloss Meter emerges as a critical tool in ensuring uniform and defined surface quality across various sectors. This is particularly crucial as variations in gloss can lead to quality complaints or material rejection. With the increasing customer demands, the ability to perform flawless, objective gloss assessments has never more important.

Designed for Industry Standards

In response to the specific needs of various industries, including the automotive sector, the PICOGLOSS 560 MC-X has been meticulously designed for non-complicated, mobile gloss measurement at the widely requested 60° measurement angle. It also accommodates some specialized 60° gloss measurement requirements, catering to the diverse challenges faced in everyday testing scenarios.

User-friendly Features for Efficient Operations

The gloss meter boasts single-key operations, making it extremely easy and comfortable to use. Its high-contrast LC display not only shows measurement and calibration values but also rotates by 180 degrees to suit left-handed users. Additionally, it features an automated calibration routine, saving valuable time and ensuring precision. With capabilities for both standard gloss and mirror gloss measurements across a wide range of surfaces, the PICOGLOSS 560 MC-X is a versatile tool for quality control professionals.

Data Management and Power Supply

Data transfer to PCs is seamless via USB, supported by the PICOSOFT III software, enhancing the analysis and reporting process. The device is conveniently powered by a round cell battery, with USB power support when connected to a PC.

Technical Specifications

Display
  • graphic LCD height of digits 11 mm
Detector
  • Si photo-cell
Dimensions
  • 105 mm x 31 mm x 59 mm (L x W x H)
Net weight
  • 200 g
Light source
  • LED
PC interface
  • USB
Power supply
  • 1 round cell (LR03)
Measuring spot
  • 8 mm x 16 mm
Reproducibility
  • 0.2 GU in the range of 0 to 150 GU // 0.5 GU in the range of 150 to 1000 GU
Measuring aperture
  • 10 mm x 24 mm
Measuring geometry
  • 60°
Portable / Stationary
  • Portable
Permissible temperature range (Storage)
  • - 10 °C to + 60 °C
Permissible temperature range (Operation (non-dewy))
  • + 15 °C to + 40 °C
Reproducibility in case of interfering irradiation (EN 61000-4-3)
  • 1 GU
"

FAQ - Gloss Meter PICOGLOSS 560 MC-X – ERICHSEN

What materials can the PICOGLOSS 560 MC-X Gloss Meter measure?

The PICOGLOSS 560 MC-X is versatile and capable of measuring gloss levels on a wide range of materials including papers, plastics, metals, and wood. Its adaptability makes it an essential tool for quality control across various industries.

How user-friendly is the PICOGLOSS 560 MC-X?

This gloss meter is designed with user-friendliness in mind, featuring single-key operations for easy use. It comes with a high-contrast LC display which shows measurement and calibration values and can be rotated 180 degrees for convenience of left-handed users. Additionally, its automated calibration routine saves time and ensures precise measurements.

Can the PICOGLOSS 560 MC-X be used for both standard gloss and mirror gloss measurements?

Yes, the PICOGLOSS 560 MC-X is equipped to handle both standard gloss and mirror gloss measurements. This capability allows it to serve a broader array of testing scenarios and makes it a highly versatile tool for professionals in quality control.
