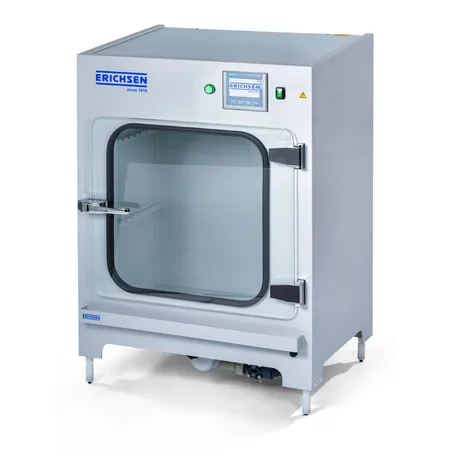

HYGROTHERM 519 – ERICHSEN

The HYGROTHERM 519 is designed to conduct a range of tests for assessing corrosion protection including condensed water constant climate (CH), condensed water alternating climate (AHT, AT), and tests in environments containing sulfur dioxide (Kesternich test). These tests are vital for evaluating the effectiveness of corrosion protection systems under various conditions as per DIN EN ISO 6270-2 and DIN EN ISO 6988 standards.

Engineered with precision, the HYGROTHERM 519 features a PLC control unit for an automated regulation of temperature, water filling, and drainage, and air ventilation. Its built-in flow meter precisely controls water fill levels, while chamber illumination improves visibility during evaluations. The unit's adaptability for both manual and automatic operations further ensures precise testing conditions.

Yes, one of the outstanding features of the HYGROTHERM 519 is its capability for remote operation. This allows users to monitor test progress and adjust parameters in real-time from anywhere, facilitating greater flexibility and control over the corrosion protection testing process.

The HYGROTHERM 519 boasts impressive specifications including a test chamber volume of 300 liters, an exterior dimension of approximately 760 x 620 x 1070 mm, and an interior dimension of approximately 700 x 475 x 680 mm. It operates on a 230 V 1~, 50 Hz/700 VA power supply, consumes 6 m³/h of air, and supports a maximum chamber temperature of 50 °C. Additionally, it is designed to be stationary and can accommodate 12 – 100 test panels depending on their sizes.

Indeed, the HYGROTHERM 519 supports extended functionalities with optional accessories. This includes the HOBO U12 data acquisition system for enhanced temperature logging and an electronic gas dosing device for SO2 atmosphere tests, expanding its applicability across various corrosion testing scenarios.

The HYGROTHERM 519 has a net weight of approximately 55 kg and requires an air pressure of 6 bar for optimal operation. This makes it a robust and reliable solution for comprehensive corrosion protection evaluations.

With its chamber illumination feature, the HYGROTHERM 519 significantly enhances the visibility of tests being conducted. This not only facilitates close monitoring but also allows for better control and precision during the testing process.
