Optimize Your Coating Analysis with Model 299/300

Explore the pinnacle of coating analysis with the Model 299/300 Pendulum Damping Tester, specifically designed to assess the mechanical damping behavior of lacquers, paints, and similar coatings. Discover how the mechanical properties of your coatings correlate with their performance, leveraging this tester’s precision and versatility.

Advanced Test Principle for Comprehensive Analysis

Utilizing a standardized pendulum, the Model 299/300 measures the damping of vibrations based on the coating’s softness. This method provides a direct insight into the material’s mechanical characteristics in a straightforward and reproducible manner.

Robust Design for Accurate Measurements

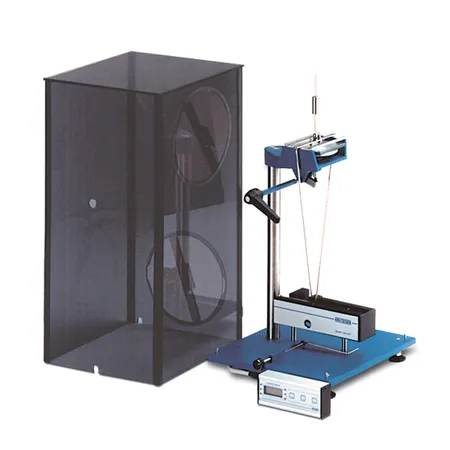

Featuring a levellable base plate and a column equipped with a sample holder, the Model 299/300 is engineered for stability and accuracy. Its protective acrylic glass hood shields against environmental variables, ensuring consistent test conditions and results.

Versatile Options for Enhanced Functionality

With options for manual or automatic pendulum actuation, this tester is tailored for ease of use without compromising on precision. Choose between König and Persoz pendulums to cater to specific standards, with automatic adjustment for seamless operation. The digital display provides clear, immediate feedback on oscillation metrics for informed analysis.

Industry-standard Certification

Supplied with a Manufacturer’s Certificate M in accordance with DIN 55 350-18, the Model 299/300 guarantees reliability and traceability. Embrace confidence in your measurements with documented calibration and inspection details.

Technical Specifications
Drive
  • Electric
Supply voltage
  • 230 VAC +/- 10 %
Power consumption
  • 25 VA
Portable / Stationary
  • Stationary
Basic instrument: Dimensions
  • approx. 700 mm x 325 mm x 345 mm (H x W x D)
Basic instrument: Net weight
  • approx. 17 kg
Control Terminal: Dimensions
  • approx. 35 mm x 167 mm x 65 mm (H x W x D)
Control Terminal: Net weight
  • approx. 0.4 kg
Measuring Module (basic version): Dimensions
  • approx. 60 mm x 235 mm x 70 mm (H x W x D)
Measuring Module (basic version): Net weight
  • approx. 0.5 kg
Measuring Module (automatic version): Dimensions
  • approx. 65 mm x 235 mm x 107 mm (H x W x D)
Measuring Module (automatic version): Net weight
  • approx. 0.75 kg

FAQ - Pendulum Damping Tester Model 299/300 – ERICHSEN

What is the primary function of the Pendulum Damping Tester Model 299/300?

The Model 299/300 is engineered specifically for assessing the mechanical damping behavior of lacquers, paints, and similar coatings. It measures the damping of vibrations to provide direct insight into the material's mechanical characteristics, aiding in the analysis of how well a coating performs based on its mechanical properties.

Can the Model 299/300 provide precise and repeatable results?

Yes, designed with a levellable base plate and a sample holder for stability and accuracy, as well as a protective acrylic glass hood to maintain consistent test conditions, the Model 299/300 ensures precise and reproducible results every time.

Does the tester accommodate different testing standards?

Indeed, the Model 299/300 offers options for both König and Persoz pendulums, allowing for flexibility to meet specific standards. With manual or automatic pendulum actuation and automatic adjustment features, it adheres to diverse testing requirements seamlessly.

What types of display and feedback does it offer?

The tester is equipped with a digital display that provides clear and immediate feedback on oscillation metrics, enabling users to conduct informed and efficient analysis.

Is the Pendulum Damping Tester Model 299/300 certified?

Yes, it comes supplied with a Manufacturer's Certificate M in accordance with DIN 55 350-18, guaranteeing reliability and traceability. This certification ensures that users can have complete confidence in their measurements and the tester's calibration.

What are the power requirements and dimensions of the Model 299/300?

The Pendulum Damping Tester Model 299/300 requires a supply voltage of 230 VAC +/- 10% and consumes 25 VA of power. The basic instrument measures approximately 700 mm x 325 mm x 345 mm (H x W x D) and weighs about 17 kg. Control Terminal and Measuring Module dimensions and weights vary slightly between basic and automatic versions.

Is the tester designed for portability?

While the Model 299/300 is designed with precision and comprehensive analysis in mind, its construction is stationary, making it well-suited for laboratory or dedicated space usage rather than for portability.
