Optimize Your Research with High-Quality Electrode Tips from BioLogic

Discover the versatility and precision of BioLogic’s electrode tips, designed for the demanding needs of scientific research. Our extensive selection includes RDE & RRDE tips made from various materials such as glassy carbon, platinum, and boron-doped diamond, all nested within robust PEEK or PTFE bodies for unparalleled chemical compatibility and mechanical integrity. These tips ensure optimal performance in experiments requiring high chemical resistance.

Our electrode tips feature standard M6 threading for seamless integration with BioLogic BluRev products, ensuring efficient mechanical transferability. The collection boasts a range of sizes to accommodate diverse research requirements, providing custom solutions for RDE experiments. The innovative design allows for the easy placement of working electrodes within a leak-proof setup, promoting precision and reliability in your applications.

BioLogic is committed to advancing scientific exploration by offering electrode tips that meet the highest standards of quality and performance. Whether your research demands the exceptional conductivity of platinum or the chemical resilience of PTFE bodies, our products are engineered to facilitate groundbreaking experiments.

Explore our specifications for detailed product information and find the perfect components to enhance your research machinery. With BioLogic, elevate your scientific pursuits with electrode tips that are as sophisticated as they are reliable.

Technical Specifications

All standard tip bodies (M6 thread) are made of PEEK, but for experiments requiring a high chemical resistance, PTFE versions are also available.

All tips are polished to obtain a final roughness Ra of 50 nm (*Ra = 10 nm for the Boron Doped Diamond tip).

RDE tips (Disk electrodes)

Disk electrodesCatalog n°
Glassy Carbon (3 mm)094-GC/3
Glassy Carbon (5 mm)094-GC/5
Glassy Carbon, PTFE body (3 mm)094-PTFE-GC/3
Glassy Carbon, PTFE body (5 mm)094-PTFE-GC/5
Platinum (2 mm), 99.9 %094-Pt/2
Platinum, PTFE body (3 mm), 99.9 %094-PTFE-Pt/3
Gold (2 mm), 99.9 %094-Au/2
Gold, PTFE body (3 mm), 99.9 %094-PTFE-Au/3
Boron Doped Diamond (3 mm)
500 μm diamond layer
Typical Ra = 10 nm
Boron doping level between 500 and 1000 ppm

094-BDD/3
Titanium (3 mm), 99.9 %094-Ti/3
Silver (3mm), 99.9 %094-Ag/3
Aluminum (3 mm), 99.9 %094-Al/3
Copper (3 mm), 99.9 %094-Cu/3
Nickel (3 mm), 99.9 %094-Ni/3
Stainless steel (3 mm), 99.9 %094-316L/3

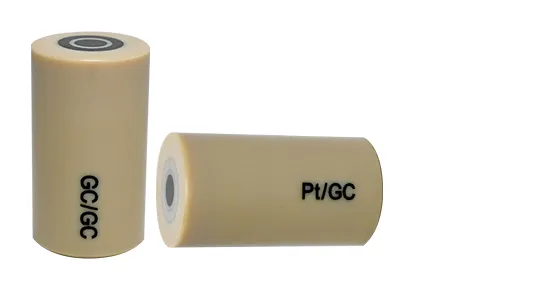

RRDE tips (Ring-Disk electrodes)

Ring-Disk electrodesCatalog n°
Glassy Carbon Ring & Disk (Nmax = 0.4626)094-GC-GC
Pt Ring (99.9 %) - Glassy Carbon Disk (Nmax = 0.4626)094-Pt-GC

Disk replaceable tips

Disk replaceable electrodesCatalog n°
Mounting tool kit094-DRE-KIT
3 mm PEEK empty tip094-DRE/3
Spacer kit (1x PEEK, 3x PTFE)094-SPACER-KIT
Polishing tip094-DRE-POLISH

FAQ - Electrode tips – BioLogic

What materials are used for BioLogic electrode tips?

BioLogic offers electrode tips made from various high-quality materials, including glassy carbon, platinum, boron-doped diamond, gold, titanium, silver, aluminum, copper, nickel, and stainless steel. Each material is chosen for its specific properties to match the demanding needs of different scientific research applications.

Are the electrode tips compatible with any electrode body material?

All standard electrode tips feature M6 threading and are designed to fit robust PEEK bodies, ensuring a high degree of chemical compatibility and mechanical integrity. For experiments requiring enhanced chemical resistance, PTFE body versions are also available.

Can BioLogic electrode tips be used with non-BioLogic equipment?

Our electrode tips feature standard M6 threading, which is a common size in the industry and ensures compatibility with BioLogic BluRev products as well as the potential for mechanical transferability to other equipment complying with these specifications.

What are the roughness specifications of the electrode surfaces?

The surface of our electrode tips is polished to achieve a final roughness (Ra) of 50 nm. However, for the Boron Doped Diamond tips, a superior polish is achieved with a final roughness of 10 nm to ensure optimal performance in experiments requiring high precision.

Do you offer custom solutions for specific experimental needs?

Yes, BioLogic is dedicated to supporting the scientific community with not only a wide range of standard electrode tips but also with the capability to provide custom solutions tailored to the specific needs of your RDE experiments. Please contact us with your requirements.

How can I find the right electrode tip for my research?

You can explore our extensive collection of RDE and RRDE tips, along with detailed product specifications on our website. Our electrode tips are categorized by material, size, and compatibility options to help you easily identify the perfect component for your research setup.

Where can I obtain more detailed product information or place an order?

For more detailed product information, including pricing and order placement, please visit our website or contact our customer service team directly. Our experts are ready to assist you in selecting the best electrode tips to enhance your research machinery and experiments.
