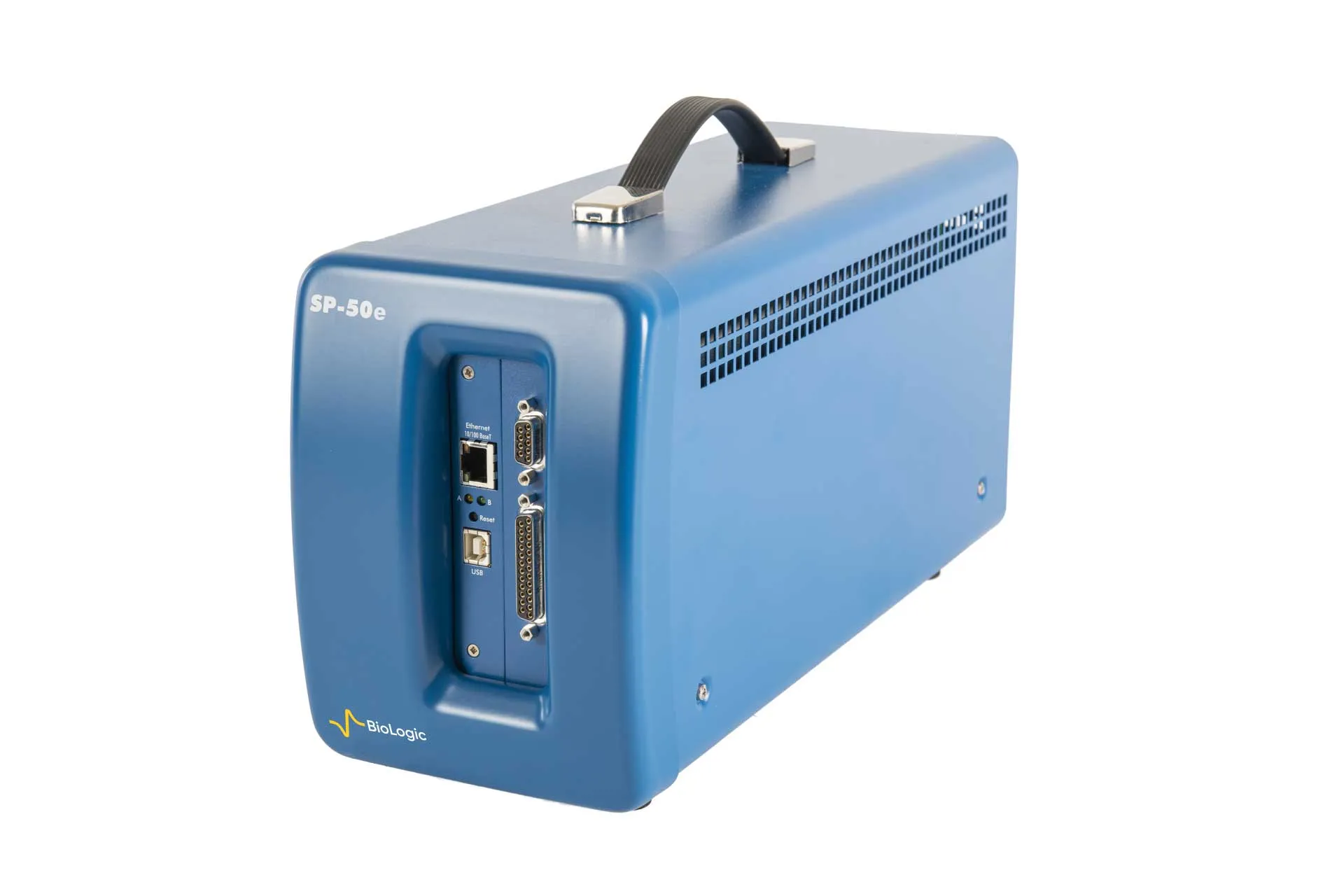

BioLogic SP-50e cost-effective education potentiostat

Introducing the BioLogic SP-50e: The Ultimate Electrochemistry Workstation for Education and Research

Designed with both education and research in mind, the BioLogic SP-50e potentiostat stands out as a robust, single-channel device that champions both affordability and high-quality performance. Crafted for a broad range of electrochemistry applications, this instrument taps into the well-established hardware and software seen across BioLogic’s Essential product range, ensuring ease of use without compromising on power or versatility.

Offering compatibility with over 80 techniques through the EC-Lab&reg\\; software, the SP-50e is not just a tool but a comprehensive solution for studying electrochemical systems and reactions. Its compact design, complete with a lightweight build and a handle, provides unmatched portability within lab environments, making it ideal for educational purposes.

Furthermore, the SP-50e potentiostat excels in energy-based applications such as battery, supercapacitor, fuel cell, and electrolysis research, thanks to its &plusmn\\;1 ampere capability. Powered by EC-Lab, the leading control and analysis software in electrochemistry, users benefit from an integrated, user-friendly platform that simplifies complex tasks, enhances productivity, and maximizes the research output.

With the SP-50e, educators and researchers have access to a tool that is not only cost-effective but also powerful, modular, and easy to navigate, ensuring that all electrochemical research and teaching needs are met with precision and efficiency.

Technical Specifications

General
Slots available1
Electrodes connections2, 3, 4, 5
Compliance&plusmn\\; 10 V
Acquisition time20 &micro\\;s with EC-Lab developer package, 200 &micro\\;s with EC-Lab
Live processed data : 200 &micro\\;s, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developer package
Add-ons compatibilityNo
Dimension (W x D x H)136 x 372 x 209 mm
Weight3.9 kg
Power requirement110 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
Ranges&plusmn\\; 10 V&plusmn\\; 2.5 V, &plusmn\\; 5 V, &plusmn\\; 10 V
Accuracy&lt\\; 0.1 % FSR* (20 mV)&lt\\; 0.1 % FSR* (20 mV)
Resolution5 &micro\\;V to 305 &micro\\;V76 &micro\\;V below 10 V
152 &micro\\;V from 10 to 15 V
305 &micro\\;V from 15 to 20 V
Current
Ranges&plusmn\\; 10 &micro\\;A to &plusmn\\; 1 A (6 ranges). Automatic current range available.
Accuracy&lt\\; 0.1 % FSR* (min 20 nA)
Resolution0.004 % of the range (min 760 pA)
EIS
EIS capability1 MHz to 10 &micro\\;Hz
EIS quality indicatorsYes (with "e" type channel board)
Advanced
Floating optionsCE to ground
Permeation (WE to ground)No
Multi-electrode (CE to ground)Yes (with "e" type channel board)
FiltersSoftware
Input/ouput2x analog inputs
1x analog output
3x TTL (trigger input/output, and safety)
2x monitor outputs (current and voltage)
Stability control mode 7 bandwidths
CalibrationMore than 50 verified points.

FAQ - BioLogic SP-50e cost-effective education potentiostat

What makes the BioLogic SP-50e suitable for educational purposes?

The BioLogic SP-50e potentiostat is designed with a robust, single-channel structure that balances affordability with high-quality performance. It's compact, portable, and supports over 80 electrochemistry applications through the EC-Lab®\; software, making it an ideal educational tool for a comprehensive learning experience.

Can the SP-50e be used for energy-based research applications?

Yes, the SP-50e excels in energy-based applications including battery, supercapacitor, fuel cell, and electrolysis research. Its ±\;1 ampere capability allows for a wide range of research activities, supported by the powerful and user-friendly EC-Lab software.

What types of electrodes can be connected to the SP-50e?

The SP-50e potentiostat supports connection with 2, 3, 4, and 5 electrodes, providing flexibility for various electrochemical studies and making it suitable for a broad range of applications.

What are the main specifications of the SP-50e potentiostat?

Main specifications include:

  • Slots available: 1
  • Compliance: ±\; 10 V
  • Acquisition time: 20 µ\;s with EC-Lab developer package, 200 µ\;s with EC-Lab
  • Software options: EC-Lab and EC-Lab developer package
  • Dimension: 136 x 372 x 209 mm
  • Weight: 3.9 kg

How does the SP-50e facilitate data analysis and control in electrochemistry experiments?

Powered by EC-Lab, the leading control and analysis software in electrochemistry, the SP-50e offers an integrated, user-friendly platform that simplifies complex tasks. Users benefit from live processed data options and customizable experiment parameters, enhancing productivity and research output.

Is the BioLogic SP-50e potentiostat compatible with any add-ons?

As indicated in its specifications, the SP-50e does not support add-ons. However, its comprehensive in-built features and compatibility with over 80 techniques through EC-Lab®\; software make it a versatile tool for a wide range of electrochemical experiments.
