VSP Potentiostat – BioLogic

The VSP Potentiostat is a versatile, research-grade multichannel electrochemical workstation designed for scientists requiring comprehensive electrochemical measurements. It's ideal for EIS measurements, battery research, corrosion studies, and various electrochemical applications requiring multiple channels.

The VSP provides EIS measurements from 10 µHz to 1 MHz with current ranging from 10 μA up to 1 A. External boosters can extend the current range from 2 A up to 100 A per channel, making it suitable for high-power applications.

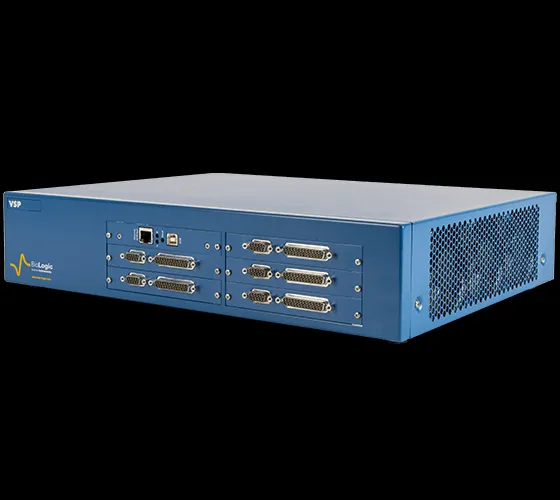

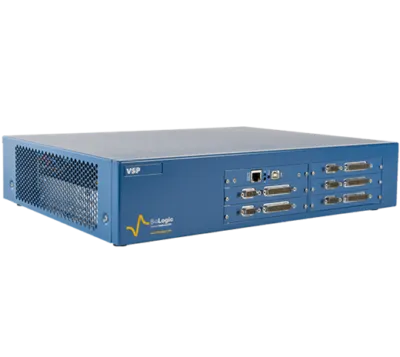

The VSP is built around a 5-channel modular chassis with up to 5 slots available. It supports 2, 3, 4, or 5 electrode connections and allows for additional potentiostat channels to be added as needed.

The VSP is controlled by Bio-Logic's EC-Lab software suite, including EC-Lab, EC-Lab Express, and EC-Lab developer package. EC-Lab has earned the reputation as the benchmark for potentiostat control software combining intuitive control with powerful analytical capabilities.

The VSP measures 435 x 335 x 95 mm (W x D x H) and weighs 8 kg. It requires 300 W of power and features a compliance voltage of 20 V adjustable from ± 10 V between [-20 ; 20] V range.

Yes, the VSP supports floating options when equipped with "e" type channel boards. This makes it suitable for grounded cell measurements and other specialized applications requiring electrical isolation.
