Optimized Power and Precision for Advanced Battery Testing

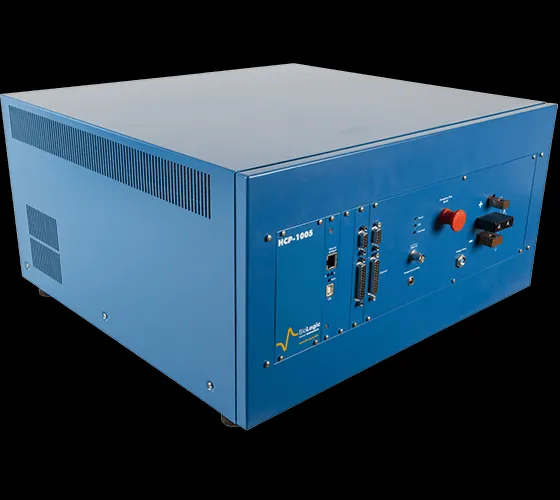

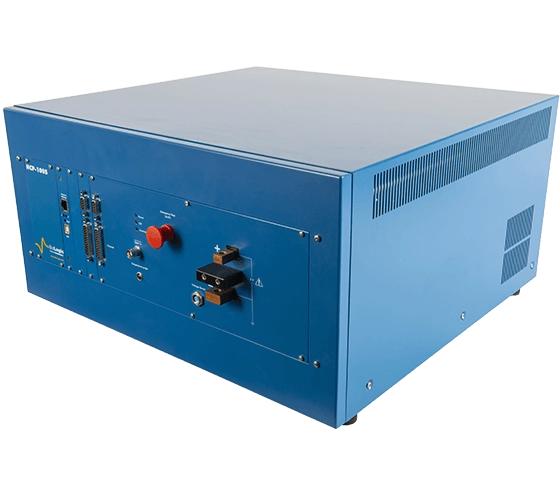

Introducing the HCP-1005, a high-current potentiostat and Frequency Response Analyzer (FRA) that’s transforming the way high-capacity secondary batteries are studied. This compact yet powerful instrument offers a voltage range of 0.6 to 5 V and an impressive current range of ±100 A, making it the go-to solution for comprehensive Li-ion battery tests. With the integration of Electrochemical Impedance Spectroscopy (EIS) capabilities right into its chassis, the HCP-1005 excels in monitoring cell performance throughout ageing tests, ensuring that your battery’s lifecycle is maximized.

Designed to combine research-grade precision with the robustness of a 100 A booster in a singular chassis, the HCP-1005 stands out as a pivotal tool for both research and industrial purposes. Whether it’s for developmental research, quality control, or performance evaluation, the HCP-1005 delivers unparalleled precision.

The device comes equipped with EC-Lab®, BioLogic’s benchmark software for potentiostat/galvanostat control and analysis. Renowned for its intuitive interface and powerful analytical capabilities, EC-Lab® allows users to fully leverage the capabilities of the HCP-1005, making it the ultimate instrument for battery testing and analysis.

Technical Specifications
General
Slots available1
Electrodes connections2, 3, 4, 5
Compliance6 V
Acquisition time20 µs with EC-Lab developer package, 200 µs with EC-Lab.
Live processed data : 200 µs, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developper package
Add-ons compatibilityIntegrated booster
Dimension (W x D x H)495 x 465 x 262 mm
Weight25 kg
Power requirement1000 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
Ranges0.6 - 5 V adjustable range
Accuracy&lt\\; 0.1 % FSR*
Current
Ranges± 100 A
Accuracy&lt\\; 0.5 % FSR* (&lt\\; 1 A)
EIS
EIS capability10 kHz to 10 µHz
EIS quality indicatorsYes (with "e" type channel board)
Features
Potential noise0.15 mV (RMS type)
Current noise5 mA (RMS type)
Rise/fall timePotentio: 1.7 ms (no load). Galvano: 4 ms (load = 20 mΩ, 50 cm cable)
Advanced
Electrode connectionsCE to ground
FiltersSoftware
Input/Output1x external input (TTL level), Temperature probe PT100 (0 to 250 °C), 1x Open IN (0 - 5 V TTL level active low), Overheat shutdown at 70 °C
Stability control mode 4 bandwidths

FAQ - HCP-1005 Potentiostat – BioLogic

What makes the HCP-1005 Potentiostat suitable for advanced battery testing?

The HCP-1005 is a high-current potentiostat with Frequency Response Analyzer (FRA) capabilities, designed for comprehensive Li-ion battery tests. It offers a voltage range of 0.6 to 5 V and a current range of ±100 A, combined with Electrochemical Impedance Spectroscopy (EIS) for monitoring cell performance throughout ageing tests. This ensures maximum battery lifecycle, making it ideal for advanced battery testing.

Can the HCP-1005 be used for both research and industrial purposes?

Yes, the HCP-1005 is designed to combine research-grade precision with the durability required for industrial environments. This makes it a pivotal tool not only for developmental research but also for quality control and performance evaluations in a commercial setting.

What software is recommended for operating the HCP-1005 Potentiostat?

The device is best operated with EC-Lab®, BioLogic's benchmark software for potentiostat/galvanostat control and analysis. EC-Lab® is renowned for its intuitive interface and powerful analytical capabilities, allowing users to fully leverage the sophisticated features of the HCP-1005.

What are the key specifications of the HCP-1005?

The HCP-1005 features a wide array of specifications, including but not limited to a voltage accuracy of less than 0.1% FSR, a current range of ±100A with accuracy of less than 0.5% FSR (<1 A), EIS capability from 10 kHz to 10 µHz, and potential noise of 0.15 mV (RMS type). It measures at 495 x 465 x 262 mm in dimension and weighs 25 kg. For detailed specifications, refer to its datasheet.

Is real-time data processing available on the HCP-1005?

Yes, the HCP-1005 offers real-time data processing with live processed data accessible at 200 µs, independent of the sampling rate. This feature facilitated by EC-Lab software enables users to instantly assess various battery performance metrics during testing.

What type of connection interfaces does the HCP-1005 support?

The HCP-1005 supports multiple connectivity options including Ethernet (Direct, LAN, Wifi) and USB 2.0, allowing for versatile integration into existing laboratory networks and systems for efficient data management and analysis.

Can the HCP-1005 be integrated with other modules or systems?

Yes, with its add-ons compatibility feature, particularly the integrated booster, the HCP-1005 offers flexibility for expanded functionalities. This capability ensures it can be easily integrated with other modules or systems for enhanced testing configurations.
