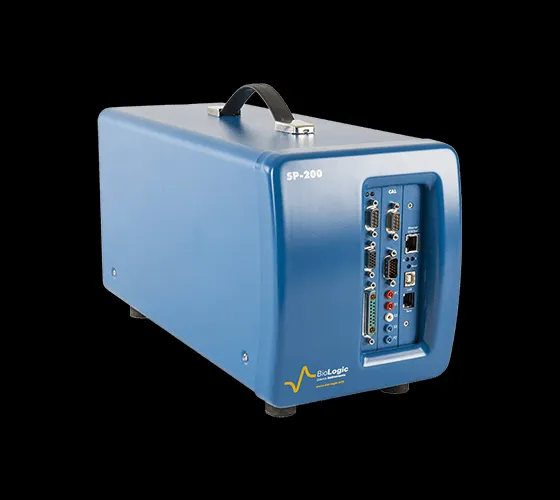

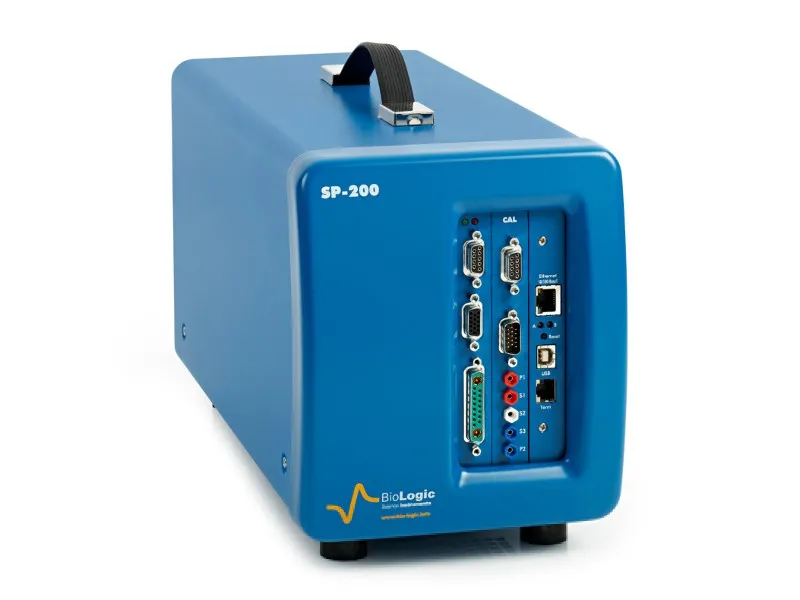

Introducing the SP-200 Potentiostat: A Research-Grade Innovation for Electrochemistry and Corrosion Analysis

The SP-200 by BioLogic stands at the forefront of potentiostat technology, offering unrivaled precision with its 100 fA accuracy ultra-low current capability. Designed for a wide array of electrochemistry applications, especially corrosion analysis, this research-grade instrument does not compromise on quality. With its compact design, the SP-200 is ideally suited for in-situ measurements, making it a valuable tool for fields focusing on electroanalysis and corrosion.

Equipped with a comprehensive suite of features including a floating mode, analog filtering, and an integrated calibration board, the SP-200 guarantees reliability and versatility. It can be tailored to specific research needs with add-ons such as a standard DC potentiostat and Electrochemical Impedance Spectroscopy (EIS) option, alongside an Ultra-Low Current (ULC) alternative for enhanced sensitivity.

The pinnacle of its usability lies in the EC-Lab&reg\\; software, a leading control and analysis solution developed by BioLogic. Renowned for its intuitive interface and potent analytical capabilities, EC-Lab&reg\\; ensures that the advanced hardware of the SP-200 is fully leveraged, empowering researchers to push the boundaries of electrochemical exploration.

Technical Specifications
General
Slots available1
Electrodes connections2, 3, 4, 5
Compliance± 12 V
Acquisition time & timebase1 µs with ARG option, 20 µs with EC-Lab developer package, 200 µs with EC-Lab.
Live processed data : 200 µs, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developer package
Add-ons compatibilityYes
Dimension (W x D x H)167 x 410 x 225 mm
Weight7.2 kg
Power requirement350 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
RangesCustomizable ranges. Adjustable from ± 10 V down to ± 30 mV.
Up to [0\\; 48] V with HCV-3048
± 10 V customizable
Accuracy&lt\\; ± 1 mV ± 0.03 % of setting&lt\\; ± 1 mV ± 0.03 % of reading
ResolutionFrom 1 µV (± 60 mV range) to 333 µV (± 10 V range)76 µV (7.6 µV for ± 250 mV, 0.76 µV for ± 25 mV, ZRA only)
Current
Ranges± 1 A to 10 nA (9 ranges),
up to 120 A with four HCV-3048
down to ± 1 pA using Ultra Low Current option
240 % of range value, except for the 1 A range (50 % of range)
Accuracy&lt\\; ± 0.1 % of range ± 0.03 % of setting&lt\\; ± 0.1 % of range ± 0.03 % of reading
Resolution0.004 % of the range : 760 fA (standard), 76 aA (Ultra Low Current option
EIS
EIS capability7 MHz to 10 µHz
Frequency resolution&lt\\; 10 ppm of the setting
EIS quality indicatorsYes
Advanced
Floating optionsFloating, WE to ground, CE to ground
Permeation (WE to ground)Yes
Multi-electrode (CE to ground)Yes
FiltersHardware / Software
Input/Output2x analog inputs
1x analog output
3x TTL (trigger input/output, and safety)
2x monitor outputs (current and voltage)
Stability control mode9 bandwidths
CalibrationOne calibration board included, more than 100 verified points.

FAQ - SP-200 Potentiostat – BioLogic

What is the SP-200 Potentiostat designed for?

The SP-200 Potentiostat by BioLogic is a research-grade instrument designed for a broad range of electrochemistry applications. It excels in corrosion analysis, electroanalysis, and in-situ measurements due to its ultra-low current capability of 100 fA accuracy and comprehensive suite of features.

What makes the SP-200 stand out in electrochemical research?

Its uniqueness lies in its precision, compact design, and the EC-Lab® software. The potentiostat offers unparalleled precision with ultra-low current capabilities. The compact design is ideal for various experimental setups, especially for in-situ measurements. The EC-Lab® software enhances its usability, providing an intuitive interface and powerful analytical tools to fully leverage the hardware’s advanced capabilities.

Can the SP-200 be customized for specific research needs?

Yes, the SP-200 is highly customizable with add-ons like the standard DC potentiostat and Electrochemical Impedance Spectroscopy (EIS) options, as well as an Ultra-Low Current (ULC) alternative for enhanced sensitivity. This allows researchers to tailor the device according to their specific experimental requirements.

What are the key specifications of the SP-200 Potentiostat?

The SP-200 boasts impressive specifications including 1 available slot, connections for 2, 3, 4, 5 electrodes, compliance voltage of ±12 V, and an acquisition time as low as 1 µs with the ARG option. It supports customizable voltage ranges, high accuracy, and resolution in both voltage and current measurements, and EIS capability ranging from 7 MHz to 10 µHz.

Is the SP-200 Potentiostat easy to integrate with existing setups?

Yes, the SP-200 Potentiostat is designed for easy integration. It offers various interfaces, including Ethernet (Direct, LAN, Wifi), USB 2.0, making it compatible with most modern research laboratories. The device also features multiple analog and digital inputs/outputs for enhanced connectivity options.

What kind of support and calibration options are available for the SP-200?

BioLogic provides extensive support for the SP-200, including a detailed calibration board with more than 100 verified points. The device features various floating options, hardware/software filters, and nine bandwidths for stability control mode, ensuring reliable and accurate data for your research.

How does the SP-200 Potentiostat contribute to cutting-edge research?

The SP-200 empowers researchers to advance their work in electrochemistry and corrosion through its high precision, versatility, and expandability. With its powerful software and high-quality design, the potentiostat supports the development of innovative solutions and deeper understanding in various scientific fields.
