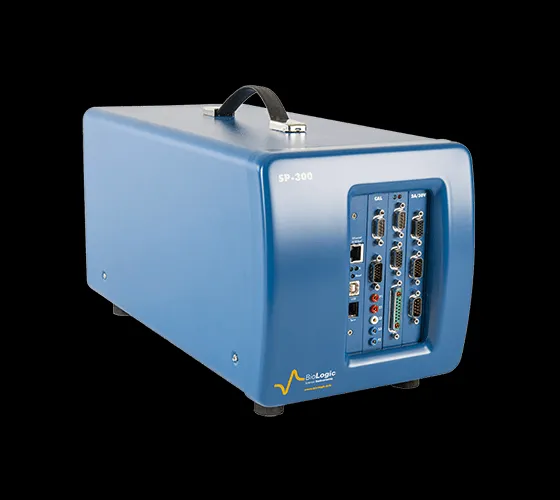

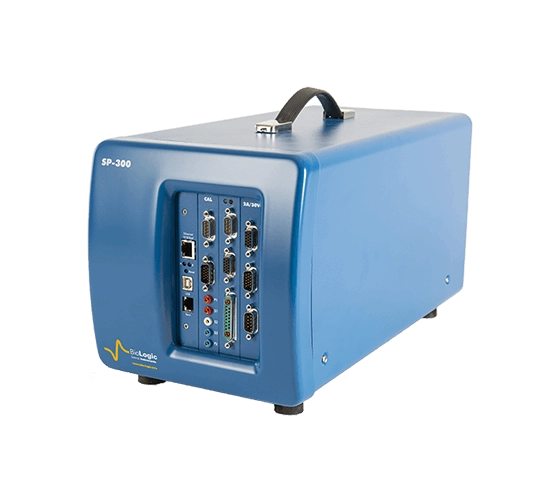

Unlock the Potential of Your Research with the SP-300 Potentiostat

The SP-300 by BioLogic is not just any potentiostat\\; it’s a beacon of innovation for research laboratories around the globe. Designed with precision engineering, this research-grade potentiostat offers a remarkable 500 mA to 10 A current range, integrated EIS capabilities, and a suite of high-end specifications aimed at propelling your research to new heights. Featuring a maximum frequency of 7 MHz, floating mode, analog filtering, and a built-in calibration board, the SP-300 stands out as a versatile and modular solution for advanced electrochemical studies.

This electrochemical workstation’s modular chassis is built to accommodate an optional high current/high voltage board or a second potentiostat board for Bipotentiostat and RRDE experiments, making it an exceptional multi-user system with independent channel board usage. Coupled with BioLogic’s benchmark potentiostat control software, EC-Lab®, the SP-300 offers an intuitive yet powerful research tool, making intricate analyses and experimentation simpler and more effective than ever before.

Whether you’re conducting single or multi-user electrochemical research, the SP-300 Potentiostat is engineered to deliver unparalleled precision, adaptability, and performance, making it an indispensable asset for leading-edge research and development projects within the science community.

Technical Specifications
General
Slots availableUp to 2
Electrodes connections2, 3, 4, 5
Compliance± 12 V
Acquisition time1 µs with ARG option, 20 µs with EC-Lab developer package, 200 µs with EC-Lab.
Live processed data : 200 µs, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developer package
Add-ons compatibilityYes
Dimension (W x D x H)205 x 410 x 225 mm
Weight7.5 kg
Power requirement350 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
RangesCustomizable ranges. Adjustable from ± 10 V down to ± 30 mV.
Up to [0\\; 48] V with HCV-3048
± 10 V customizable
Accuracy< ± 1 mV ± 0.03 % of setting< ± 1 mV ± 0.03 % of reading
ResolutionFrom 1 µV (± 60 mV range) to 333 µV (± 10 V range)76 µV (7.6 µV for ± 250 mV, 0.76 µV for ± 25 mV, ZRA only)
Current
Ranges± 1 A to 10 nA (9 ranges),
up to 120 A with four HCV-3048
down to ± 1 pA using Ultra Low Current option
240 % of range value, except for the 1 A range (50 % of range)
Accuracy< ± 0.1 % of range ± 0.03 % of setting< ± 0.1 % of range ± 0.03 % of reading
Resolution0.004 % of the range : 760 fA (standard), 76 aA (Ultra Low Current option
EIS
EIS capability7 MHz to 10 µHz
Frequency resolution< 10 ppm of the setting
EIS quality indicatorsYes
Advanced
Floating optionsFloating, WE to ground, CE to ground
Permeation (WE to ground)Yes
Multi-electrode (CE to ground)Yes
FiltersHardware / Software
Input/Output2x analog inputs
1x analog output
3x TTL (trigger input/output, and safety)
2x monitor outputs (current and voltage)
Stability control mode9 bandwidths
CalibrationOne calibration board included, more than 100 verified points.

FAQ - SP-300 Potentiostat – BioLogic

What makes the SP-300 Potentiostat unique in electrochemical research?

The SP-300 Potentiostat stands out due to its precision engineering, offering a wide current range of 500 mA to 10 A, integrated Electrochemical Impedance Spectroscopy (EIS) capabilities up to 7 MHz, and a modular design. Its versatility is further enhanced with the option to add a high current/high voltage board or a second potentiostat board, making it ideal for a variety of advanced electrochemical studies.

Can the SP-300 Potentiostat accommodate multi-user scenarios?

Yes, the SP-300’s modular chassis is designed for multi-user environments. With options for an additional potentiostat board, it allows for Bipotentiostat and RRDE experiments to be conducted independently by different users, making it an exceptional multi-user system.

What software is compatible with the SP-300 Potentiostat?

The SP-300 is compatible with BioLogic's EC-Lab® software and the EC-Lab developer package. These software solutions offer intuitive control and advanced data analysis, making experimental set-up and execution simpler and more efficient.

How does the SP-300 ensure precise and accurate measurements?

The SP-300 ensures precision through customizable voltage and current ranges, along with high-resolution measurements. Its specifications include voltage accuracy of ± 1 mV ± 0.03% of setting, current accuracy of ± 0.1% of range ± 0.03% of setting, and EIS capability with a frequency resolution of less than 10 ppm of the setting. These features ensure accurate and reliable results for leading-edge research.

Is the SP-300 designed for specific types of electrochemical experiments?

While the SP-300 Potentiostat is engineered to support a broad range of electrochemical techniques, its integrated EIS capabilities, floating mode options, and high current/voltage adaptability make it particularly suited for advanced studies in corrosion, coatings, battery testing and development, and more.

What additional support does BioLogic offer for SP-300 users?

BioLogic provides comprehensive support for SP-300 users, including detailed documentation, application notes, and direct support from a team of experienced electrochemistry professionals. Additionally, users can access a wealth of resources on the BioLogic website, including tutorials and FAQs on optimizing their use of the SP-300 for specific research needs.

Can the SP-300 be integrated with other laboratory systems?

Yes, the SP-300 Potentiostat is designed with integration in mind, featuring multiple interfaces including Ethernet (Direct, LAN, Wifi) and USB 2.0. This allows for seamless integration with laboratory networks and the ability to control the instrument remotely or incorporate it into automated laboratory setups.
