Discover VMP-300: The Epitome of Modular Electrochemical Research

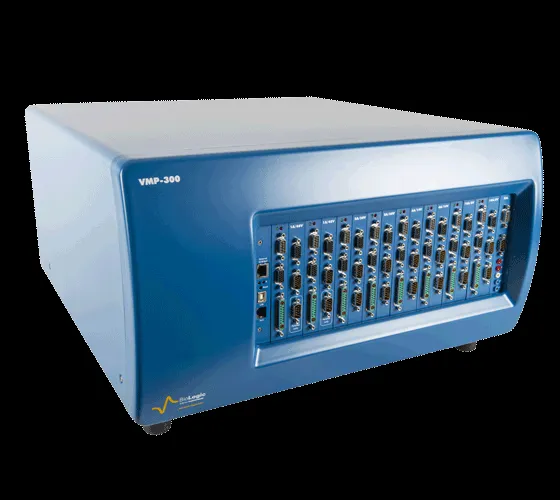

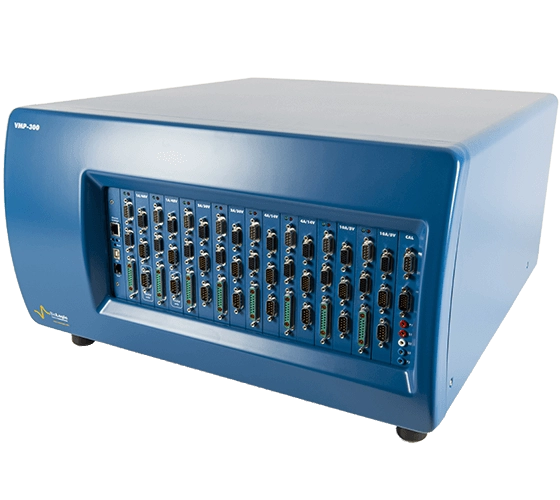

Introducing the VMP-300 Potentiostat by BioLogic, a premier solution tailored for advanced electrochemical research and testing. Engineered to accommodate a myriad of experimental setups, this multichannel potentiostat offers unparalleled precision and versatility. Its flexible design, featuring 16 slots for various modules including potentiostats, galvanostats, EIS boards, and booster boards, allows for a highly customizable setup tailored to your specific research needs.

Optimize your experiments with its EIS capability, boasting a frequency range up to 7MHz, and explore ultra-sensitive measurements with the ultra-low current (ULC) option. This multifaceted instrument supports simultaneous measurement across multiple channels, enabling high throughput without compromise on accuracy or efficiency.

Multiple users can access the VMP-300 simultaneously, thanks to BioLogic’s advanced Ethernet LAN connection capabilities. Complementing this hardware is EC-Lab, the benchmark control and analysis software by BioLogic, designed for intuitive operation and in-depth analysis.

Empower your research with the VMP-300 Potentiostat, an embodiment of exceptional modularity, versatility, and precision, making it the cornerstone of any modern electrochemical research facility.

Key Applications

  • Corrosion analysis and testing
  • Fuel cell research and development
  • Battery material development and characterization
  • Electrochemical impedance spectroscopy (EIS)
  • Advanced battery research

Technical Advantages

  • Ultra-low current option (1 pA resolution)
  • Floating mode capability
  • 18-bit resolution on all channels
  • Modular architecture for future expansion

Nordic Support & Service

✓ On-site installation across Scandinavia
✓ Technical support in local language
✓ Annual calibration service available
✓ Training at your facility
✓ Leasing options for research projects

Get Started: Schedule a demo or discuss your electrochemistry requirements with our specialists.

Technical Specifications
General
Slots availableUp to 16
Electrodes connections2, 3, 4, 5
Compliance± 12 V
Acquisition time1 µs with ARG option, 20 µs with EC-Lab developer package, 200 µs with EC-Lab.
Live processed data : 200 µs, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developer package
Add-ons compatibilityYes
Dimension (W x D x H)534 x 565 x 315 mm
Weight30 kg
Power requirement1500 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
RangesCustomizable ranges. Adjustable from ± 10 V down to ± 30 mV.
Up to [0\\; 48] V with HCV-3048
± 10 V customizable
Accuracy&lt\\; ± 1 mV ± 0.03 % of setting&lt\\; ± 1 mV ± 0.03 % of reading
ResolutionFrom 1 µV (± 60 mV range) to 333 µV (± 10 V range)76 µV (7.6 µV for ± 250 mV, 0.76 µV for ± 25 mV, ZRA only)
Current
Ranges± 1 A to 10 nA (9 ranges),
up to 120 A with four HCV-3048
down to ± 1 pA using Ultra Low Current option
240 % of range value, except for the 1 A range (50 % of range)
Accuracy&lt\\; ± 0.1 % of range ± 0.03 % of setting&lt\\; ± 0.1 % of range ± 0.03 % of reading
Resolution0.004 % of the range : 760 fA (standard), 76 aA (Ultra Low Current option
EIS
EIS capability7 MHz to 10 µHz
Frequency resolution&lt\\; 10 ppm of the setting
EIS quality indicatorsYes
Advanced
Floating optionsFloating, WE to ground, CE to ground
Permeation (WE to ground)Yes
Multi-electrode (CE to ground)Yes
FiltersHardware / Software
Input/Output2x analog inputs
1x analog output
3x TTL (trigger input/output, and safety)
2x monitor outputs (current and voltage)
Stability control mode9 bandwidths
CalibrationOne calibration board included, more than 100 verified points.

FAQ - VMP-300 Potentiostat – BioLogic

What makes the VMP-300 Potentiostat by BioLogic stand out for electrochemical research?

The VMP-300 Potentiostat is designed for advanced electrochemical research offering unparalleled precision and versatility. It features 16 customizable slots for modules including potentiostats, galvanostats, EIS boards, and booster boards, allowing for a highly customizable setup. Moreover, its EIS capability up to 7MHz and ultra-low current option facilitate ultra-sensitive measurements for a broad range of experimental setups.

How many electrodes can the VMP-300 Potentiostat connect to simultaneously?

The VMP-300 supports connections to 2, 3, 4, or 5 electrodes, providing versatility in experimental setups and measurements.

Can the VMP-300 Potentiostat support high-throughput experiments?

Yes, the VMP-300 supports simultaneous measurements across multiple channels, enabling high throughput research without compromising on accuracy or efficiency. This feature is particularly beneficial for labs requiring extensive data collection and analysis.

What are the software capabilities of the VMP-300 Potentiostat?

The VMP-300 is complemented by BioLogic's EC-Lab control and analysis software, designed for intuitive operation and in-depth analysis of electrochemical research. The software package also includes an EC-Lab developer package for advanced users.

Is there any option available for enhancing the current measurement capabilities of the VMP-300 Potentiostat?

Yes, the VMP-300 has an ultra-low current (ULC) option that extends its current measurement capabilities down to ±1pA, allowing for even more sensitive and precise measurements. Additionally, up to 120 A current range can be achieved with four HCV-3048 booster modules, making the instrument suitable for a wide range of applications.

What are the power and dimension requirements for the VMP-300 Potentiostat?

The VMP-300 requires a power input of 1500 W and has dimensions of 534 x 565 x 315 mm, weighing approximately 30 kg. It's designed to fit within standard laboratory spaces while providing all the capabilities needed for advanced electrochemical research.

Can multiple users access the VMP-300 Potentiostat simultaneously?

Yes, the VMP-300 features advanced Ethernet LAN connection capabilities that allow multiple users to access and control the instrument simultaneously. This facilitates collaborative research and efficiently maximizes the utilization of the instrument in busy laboratory environments.
