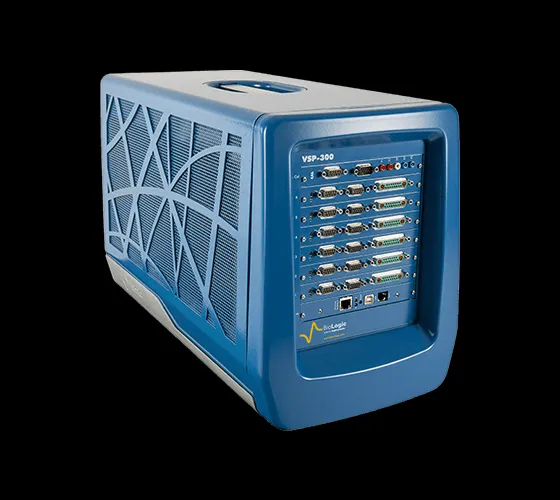

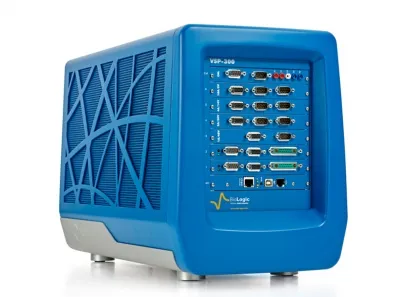

VSP-300 Potentiostat – BioLogic

VSP-300 Potentiostat – BioLogic

Unrivaled Performance in Electrochemical Research

BioLogic’s VSP-300 redefines excellence in electrochemical analysis, offering a comprehensive solution that meets the advanced needs of modern research. As a standout in its category, the VSP-300 is not just a potentiostat but a forward-thinking, research-grade Fraunhofer Resistance Analyzer (FRA) equipped with cutting-edge specifications. Drawing from BioLogic’s extensive experience in the field, the VSP-300 boasts a flexible, modular design, integrating the latest technologies to ensure unmatched performance.

Designed for Versatility and Collaboration

What sets the VSP-300 apart is its unparalleled versatility. The system features six slots, configurable from one to six channel boards, each capable of connecting to a variety of high current booster kits or accommodating an ultra-low current cable. This multiplicity not only extends its range up to 40 A but also makes it the most compact multichannel electrochemical workstation available, complete with Electrochemical Impedance Spectroscopy (EIS) capabilities.

Software That Leads the Way

At the heart of the VSP-300’s performance lies EC-Lab®, BioLogic’s benchmark potentiostat control and analysis software. Renowned for its intuitive interface and analytical depth, EC-Lab® helps users harness the full potential of the VSP-300, making it not just performant but powerful. Whether for group work or individual projects, the VSP-300’s network-connectivity ensures flexibility and ease of use across different scenarios, firmly establishing it as a premier choice for research requiring precision and adaptability.

Technical Specifications
General
Slots availableUp to 6
Electrodes connections2, 3, 4, 5
Compliance± 12 V
Acquisition time1 µs with ARG option, 20 µs with EC-Lab developer package, 200 µs with EC-Lab.
Live processed data : 200 µs, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developper package
Add-ons compatibilityYes
Dimension (W x D x H)254 x 517 x 337 mm
Weight20 kg
Power requirement650 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
RangesCustomizable ranges. Adjustable from ± 10 V down to ± 30 mV.
Up to [0\\; 48] V with HCV-3048
± 10 V customizable
Accuracy&lt\\; ± 1 mV ± 0.03 % of setting&lt\\; ± 1 mV ± 0.03 % of reading
ResolutionFrom 1 µV (± 60 mV range) to 333 µV (± 10 V range)76 µV (7.6 µV for ± 250 mV, 0.76 µV for ± 25 mV, ZRA only)
Current
Ranges± 1 A to 10 nA (9 ranges),
up to 120 A with four HCV-3048
down to ± 1 pA using Ultra Low Current option		240 % of range value, except for the 1 A range (50 % of range)
Accuracy&lt\\; ± 0.1 % of range ± 0.03 % of setting&lt\\; ± 0.1 % of range ± 0.03 % of reading
Resolution0.004 % of the range : 760 fA (standard), 76 aA (Ultra Low Current option
EIS
EIS capability7 MHz to 10 µHz
Frequency resolution&lt\\; 10 ppm of the setting
EIS quality indicatorsYes
Advanced
Floating optionsFloating, WE to ground, CE to ground
Permeation (WE to ground)Yes
Multi-electrode (CE to ground)Yes
FiltersHardware / Software
Input/Output2x analog inputs
1x analog output
3x TTL (trigger input/output, and safety)
2x monitor outputs (current and voltage)
Stability control mode 9 bandwidths
CalibrationOne calibration board included, more than 100 verified points.

FAQ - VSP-300 Potentiostat – BioLogic

What makes the VSP-300 Potentiostat by BioLogic unique in electrochemical analysis?

The VSP-300 Potentiostat stands out due to its advanced Fraunhofer Resistance Analyzer (FRA) capabilities, flexible, modular design, and incorporation of latest technologies, ensuring unrivaled performance in electrochemical research.

How many slots are available in the VSP-300 and what does this mean for its performance?

The VSP-300 features up to six slots, configurable from one to six channel boards, making it a highly versatile and compact multichannel electrochemical workstation. This modularity extends its operational range up to 40 A, accommodating various high current booster kits or ultra-low current cables.

What software is used with the VSP-300, and how does it enhance the user experience?

The VSP-300 is operated using BioLogic's EC-Lab® software, known for its intuitive interface and comprehensive analytical capabilities. EC-Lab® allows users to fully exploit the potentiostat's features, ensuring powerful and performant outcomes for both individual and group research projects.

Can the VSP-300 be integrated with multiple electrodes, and what ranges does it support?

Yes, the VSP-300 supports integration with 2, 3, 4, or 5 electrodes, offering a flexible setup for various research needs. It provides customizable voltage ranges adjustable from ± 10 V down to ± 30 mV and current ranges from ± 1 A to 10 nA, among others, ensuring broad compatibility and accurate measurements.

What are the Electrochemical Impedance Spectroscopy (EIS) capabilities of the VSP-300?

The VSP-300 excels in EIS, with capabilities ranging from 7 MHz to 10 µHz and a frequency resolution of less than 10 ppm of the setting. This makes the VSP-300 an excellent choice for a wide range of EIS applications, underlined by its EIS quality indicators.

How does the VSP-300 accommodate high precision and low current measurements?

Thanks to its advanced design, the VSP-300 can be equipped with an Ultra Low Current option for precision down to picoamperes and nanoamperes. Its current accuracy is less than ± 0.1 % of the range ± 0.03 % of the setting, with resolutions up to 76 aA, assuring high precision in low current applications.

What additional features does the VSP-300 offer for advanced electrochemical research?

For advanced research needs, the VSP-300 includes floating options, permeation (WE to ground), and multi-electrode (CE to ground) capabilities, along with hardware/software filters, various input/output configurations, stability control modes, and a comprehensive calibration board with more than 100 verified points. These features collectively enhance the flexibility and precision of electrochemical experiments.
