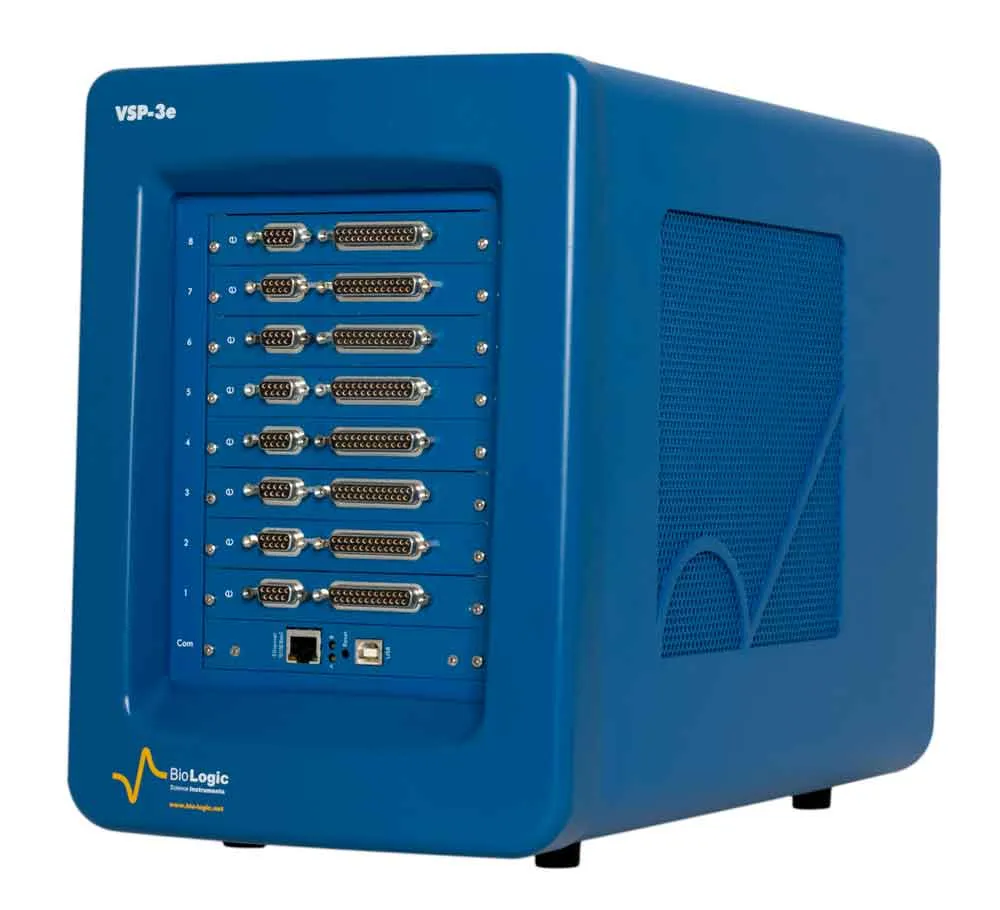

Revolutionize Energy Research with the VSP-3e Potentiostat

The VSP-3e Potentiostat from BioLogic is a cutting-edge, multichannel research instrument engineered specifically for the rigorous demands of energy research. Offering up to eight configurable channels, the VSP-3e delivers unparalleled flexibility for researchers and R&D specialists working in battery research, electrochemistry, and energy storage solutions.

This state-of-the-art potentiostat not only supports a high current range of +/- 1A, expandable to a massive 800A with additional boosters, but also features Ethernet LAN capabilities. This enables improved connectivity for multiple users or PCs, facilitating seamless collaboration and data sharing. With built-in Electrochemical Impedance Spectroscopy (EIS) as an optional addition, the VSP-3e stands as an essential tool for advanced energy research applications.

The instrument is powered by EC-Lab, BioLogic’s esteemed software, renowned for its intuitive control and powerful analytical capabilities. EC-Lab allows users to incrementally build and modify experiments with its unique ‘modify-on-the-fly’ feature, offering a broad selection of technical presets to streamline and enhance research procedures.

Incorporating energy-specific functionalities such as Fast CCCV shift, Stack mode, BCD, and automatic plotting for Coulombic efficiency, the VSP-3e opens new avenues for scientific exploration. Its compact, upright design is tailored for laboratory efficiency, saving valuable space while offering advanced electrode configuration options.

Choose the VSP-3e Potentiostat by BioLogic for your research and step into the future of energy research equipped with unparalleled precision and versatility.

Technical Specifications
General
Slots availableUp to 8
Electrodes connections2, 3, 4, 5
Compliance20 V adjustable from ± 10 V between [-20 \\; 20] V
Acquisition time20 µs with EC-Lab developer package, 200 µs with EC-Lab.
Live processed data : 200 µs, independent of sampling rate (Q charge, Q discharge, Energy, Power...)
SoftwareEC-Lab, EC-Lab developer package
Add-ons compatibilityYes
Dimension (W x D x H)225 x 320 x 405 mm
Weight12 kg
Power requirement1000 W
InterfacesEthernet (Direct, LAN, Wifi), USB 2.0
ControlMeasurement
Voltage
RangesCustomizable ranges. Compliance of 20 V adjustable (example 0 - 20 V). Up to 60 V with FlexP-0060± 2,5 V, ± 5 V, ± 10 V. ± 10 V adjustable (example 0 - 20 V). Up to 60 V with FlexP0060/FlexP0160
Accuracy&lt\\; 0.1 % FSR* (20 mV)&lt\\; 0.1 % FSR* (20 mV)
Resolution5 µV to 305 µV76 µV below 10 V, 152 µV from 10 to 15 V, 305 µV from 15 to 20 V
Current
Ranges± 10 µA to ± 1 A (6 ranges). Automatic current range available. Up to 800 A with four FlexP-0012.
Accuracy&lt\\; 0.1 % FSR* (min 20 nA)
Resolution0.004 % of the range (min 760 pA)
EIS
EIS capability1 MHz to 10 µHz
EIS quality indicatorsYes (with "e" type channel board)
Advanced
Floating optionsCE to ground
Permeation (WE to ground)No
Multi-electrode (CE to ground)Yes (with "e" type channel board)
FiltersSoftware
Input/ouput2x analog inputs
1x analog output
3x TTL (trigger input/output, and safety)
2x monitor outputs (current and voltage)
Stability control mode 7 bandwidths
CalibrationMore than 50 verified points.

FAQ - VSP-3e Potentiostat – BioLogic

What makes the VSP-3e Potentiostat ideal for energy research?

The VSP-3e Potentiostat is engineered with the demands of energy research in mind, offering up to eight configurable channels for versatility in experiments related to battery research, electrochemistry, and energy storage solutions. Its high current range, expandable to 800A with additional boosters, and the optional Electrochemical Impedance Spectroscopy (EIS) feature make it a powerful tool for advanced applications.

Can the VSP-3e be used for collaborative projects involving multiple users or PCs?

Yes, the VSP-3e features Ethernet LAN capabilities that enable enhanced connectivity options for seamless collaboration and data sharing among multiple users or PCs, facilitating a more integrated research environment.

How does the EC-Lab software enhance the functionality of the VSP-3e Potentiostat?

EC-Lab software enhances the VSP-3e by providing intuitive control and powerful analytical capabilities. Users can incrementally build and modify experiments with a 'modify-on-the-fly' feature and benefit from technical presets designed to streamline research procedures, making it easier to achieve precise and reliable results.

What are some of the specific functionalities that cater to energy research needs?

The VSP-3e is designed with functionalities such as Fast CCCV shift, Stack mode, BCD, and automatic plotting for Coulombic efficiency. These features are specifically tailored to meet the complex requirements of energy research, offering researchers advanced tools for their scientific exploration.

Is the VSP-3e Potentiostat space-efficient for laboratory settings?

Yes, the VSP-3e boasts a compact, upright design that is tailored for laboratory efficiency. It saves valuable lab space while still offering advanced electrode configuration options and maintaining superior performance.

What are the Electrochemical Impedance Spectroscopy (EIS) capabilities of the VSP-3e?

The VSP-3e is capable of performing EIS measurements across a wide frequency range from 1 MHz to 10 µHz. When equipped with the "e" type channel board, it also provides EIS quality indicators, enhancing its application in diverse research scenarios.

Can the current range of the VSP-3e be expanded for high-power applications?

Yes, the current range of the VSP-3e can be expanded up to 800 A by using four FlexP-0012 potentiostat boosters. This feature allows for high-power applications, meeting the needs of advanced energy storage and conversion research projects.
