UNIMAT® Basic 050 – ERICHSEN

UNIMAT® Basic 050 – ERICHSEN

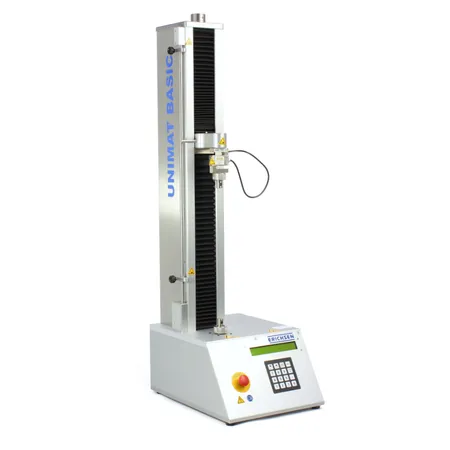

High-Performance Universal Testing Machine

The UNIMAT® BASIC 050, part of the renowned UNIMAT® BASIC series, stands out as a compact, robust Universal Testing Machine designed to facilitate quick and straightforward quality testing operations. Crafted with precision from durable aluminium and V2A materials, this testing machine is perfectly tailored for deployment in production monitoring environments.

Featuring an electromotive drive complemented by a highly efficient ball screw and bellows system, the UNIMAT® BASIC 050 ensures seamless transport driving capabilities. The incorporation of a state-of-the-art strain gauge force transducer enhances the machine’s accuracy in force measurement, making it an ideal solution for materials testing requirements.

Equipped with a user-friendly control panel integrated directly into the housing, this model offers an intuitive interface (LCD with 2-line display for force / displacement) for ease of use. It delivers a substantial testing force of 3 kN and an impressive travel distance of 500 mm. Whether operating as a standalone unit or through an external Windows program, the UNIMAT® BASIC 050 excels in delivering reliable and efficient testing outcomes, complete with a full scope of delivery including load cell, software, and comprehensive operating instructions.

Technical Specifications
Technical data
  • Max force: 3 kN
  • Motor [Watt]: 50
  • Voltage [~V]: 220/110
  • Testing Force: 3 kN
  • Clearance [mm]: --
  • Travel Distance: 500 mm
Additional Specs
  • Measured Value 1: Force
  • Measured Value 2: Tension
  • Measured Value 3: Elongation
  • Adapter size [mm]: 15.8
  • Max speed [mm/min]: 700
  • Min speed [mm/min]: 0.1
  • Effective Direction: Tension/Compression
  • Measuring Principle: DMS
  • Motor type Producer: DC Maxon
  • Stiffness / LZ [mm/kN]: 0.3
  • Weight [kg]/ incl. MFE900: 36 / 68
  • Max. travel distance [mm]: 500
  • Smallest distance to adapter [mm]: 66
  • Packing dimensions [mm] H x W x D: 1150 500 400
  • Dimensions [mm] H x W x D / incl.MFE900: 1036 390/900 300

FAQ - UNIMAT® Basic 050 – ERICHSEN

What materials is the UNIMAT® Basic 050 made from?

The UNIMAT® Basic 050 is constructed from high-quality aluminium and V2A materials, ensuring durability and longevity even in demanding production monitoring environments.

How does the electromotive drive enhance the UNIMAT® Basic 050's performance?

The inclusion of an electromotive drive system, coupled with an efficient ball screw and bellows system, guarantees smooth and reliable transport driving capabilities essential for precise materials testing.

Can the UNIMAT® Basic 050 measure tension, force, and elongation?

Yes, the UNIMAT® Basic 050 is equipped to measure a variety of metrics including tension, force, and elongation, thanks to its advanced strain gauge force transducer and versatile testing capabilities.

What is the maximum testing force and travel distance of the UNIMAT® Basic 050?

This universal testing machine delivers a substantial maximum testing force of 3 kN and an impressive travel distance of 500 mm, making it suitable for a wide range of testing requirements.

Is there an external software for operating the UNIMAT® Basic 050?

Yes, the UNIMAT® Basic 050 can be operated as a standalone unit or through an external Windows program, enhancing its versatility and user-friendliness in different testing scenarios.

What are the detailed specifications of the UNIMAT® Basic 050?

The key technical specifications include a max force of 3 kN, motor power of 50 Watts, a voltage range of 220/110 V, max and min speed ranging from 700 mm/min to 0.1 mm/min, and a maximum travel distance of 500 mm. Additional specs cover its measuring capabilities in force, tension, and elongation, as well as dimensions and weight details to fit various operational needs.

Does the UNIMAT® Basic 050 come with any additional accessories?

Yes, the UNIMAT® Basic 050 comes with a comprehensive package including a load cell, user-friendly software for test data analysis, and detailed operating instructions to get you started with minimal setup time.
