Discover the UNIMAT® Basic 054 for Advanced Material Testing

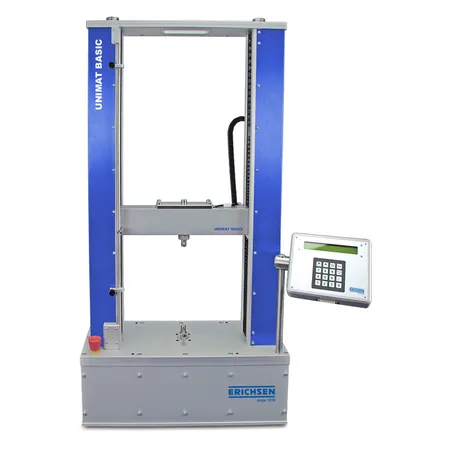

The Erichsen UNIMAT® Basic 054 / 10 kN emerges as a pivotal tool in the landscape of material testing, offering a blend of durability with precision. This testing machine is designed to cater to a wide array of applications, providing comprehensive solutions for quality testing in diverse production environments. From the robust aluminium and V2A construction to its user-friendly interface featuring a side-mountable operating panel or remote control capabilities, this machine is tailored for seamless integration into production monitoring systems.

Featuring a test force of 10 kN and significant travel of 1200 mm with a clear width of 400 mm, it accommodates a variety of materials and components. Its technological sophistication is underscored by an electromotive drive, ball screw, and protective bellows, all aimed at enhancing the precision and efficiency of testing procedures. Whether operated as a standalone unit or through an external Windows program, the UNIMAT® Basic 054 is engineered to deliver reliability and flexibility.

With the option to extend capabilities for materials requiring higher nominal forces, Erichsen ensures that every quality control or research requirement is meticulously addressed. Each unit comes complete with not just the testing equipment but also essential accessories and software, reinforcing Erichsen’s commitment to comprehensive testing solutions.

Technical Specifications
Max force
  • 10 kN
Motor [Watt]
  • 170
Voltage [~V]
  • 220/110
Testing Force
  • 10 kN
Clearance [mm]
  • 400/600/800
Operating Width
  • 400 mm
Travel Distance
  • 1200 mm
Measured Value 1
  • Force
Measured Value 2
  • Tension
Measured Value 3
  • Elongation
Adapter size [mm]
  • 15.8
Max speed [mm/min]
  • 600
Min speed [mm/min]
  • 0.1
Effective Direction
  • Tension/Compression
Measuring Principle
  • DMS
Motor type Producer
  • DC Maxon
Stiffness / LZ [mm/kN]
  • 0.3
Weight [kg]/ incl. MFE900
  • 105 / 137
Max. travel distance [mm]
  • 1200
Smallest distance to adapter [mm]
  • --
Packing dimensions [mm] H x W x D
  • 1916 740 400
Dimensions [mm] H x W x D / incl.MFE900
  • 1726 640 240/750

FAQ - UNIMAT® Basic 054 – ERICHSEN

What materials can the UNIMAT® Basic 054 test?

The UNIMAT® Basic 054 is designed for a wide range of materials, including metals, plastics, textiles, and more, due to its robust 10 kN force capability and large travel distance of 1200 mm. Its clear width of 400 mm accommodates various size materials and components.

Can the UNIMAT® Basic 054 operate automatically?

Yes, the UNIMAT® Basic 054 can be operated automatically through an external Windows program, enhancing its integration into production monitoring systems. It also features user-friendly control with a side-mountable operating panel or remote control options for versatile operation.

What is the maximum test force of the UNIMAT® Basic 054?

The maximum test force of the UNIMAT® Basic 054 is 10 kN, making it suitable for a variety of testing applications where precision and durability are crucial.

How does the UNIMAT® Basic 054 ensure testing accuracy?

The UNIMAT® Basic 054 ensures high testing accuracy through its electromotive drive, ball screw, and protective bellows. These technological features are designed to enhance the precision and efficiency of testing procedures.

Is it possible to extend the capabilities of the UNIMAT® Basic 054 for higher nominal forces?

Yes, Erichsen offers the option to extend the capabilities of the UNIMAT® Basic 054 to cater to materials requiring higher nominal forces, ensuring that a wide range of quality control and research requirements are meticulously addressed.

What are some key specifications of the UNIMAT® Basic 054?

Key specifications of the UNIMAT® Basic 054 include a maximum force of 10 kN, a motor power of 170 Watts, operating voltages of 220/110~V, a clear width of 400 mm allowing for multiple clearance options, and a maximum speed of 600 mm/min. It measures values such as force, tension, and elongation, with advanced features like DMS measuring principle and tension/compression effective direction for comprehensive testing.

What comes with the purchase of a UNIMAT® Basic 054?

The purchase of a UNIMAT® Basic 054 includes the testing machine itself, essential accessories and software for operation, highlighting Erichsen's commitment to providing comprehensive solutions for material testing needs.
