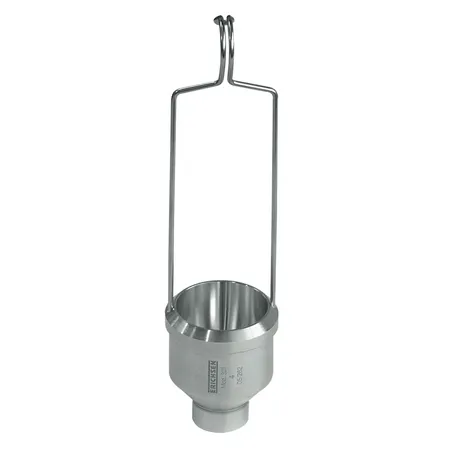

Dip Flow Cup Model 321 – ERICHSEN

The Erichsen Dip Flow Cup Model 321 is adept at measuring the viscosity of a wide range of fluids including paint, varnish, wet enamel, photogravure ink, dyes, lacquers for leather, as well as oils, fats, and various foodstuffs. Its versatile design makes it ideal for a variety of industrial and workshop environments.

Viscosity is determined by measuring the efflux time of a 100 ml volume of fluid passing through a specified nozzle diameter of 2 mm. Users simply need a stopwatch to measure the time it takes for the cup to empty completely, providing a precise and straightforward way to gauge the fluid's viscosity.

Yes, the Erichsen Dip Flow Cup Model 321 is designed to comply with DIN 53 211 standard, ensuring high accuracy and repeatability in viscosity measurement that meets international standards.

The Dip Flow Cup Model 321 is constructed from aluminum, offering durability and long-term reliability for users in demanding industrial and workshop settings.

The model is capable of measuring a viscosity range from 10 to 50 mm2/s, providing flexibility for assessing the viscosity of various fluids with precision.

To ensure the most accurate measurements, immerse the cup fully in the fluid under test, then quickly lift it out while starting the stopwatch. Maintain the cup's vertical position during the test and record the time until the cup fully empties.

Yes, the Erichsen Dip Flow Cup Model 321 comes ready for immediate application, equipped to meet the DIN 53211 standard, and requires no additional calibration or setup for accurate viscosity measurement right out of the box.
