Advanced Coating Thickness Measurement Software
WedgeSoft X is sophisticated software designed for precise coating thickness measurement using wedge cut analysis. The software is executed via security dongle and is activated by simply plugging it into the computer, ensuring secure and straightforward operation.
Measurement Process

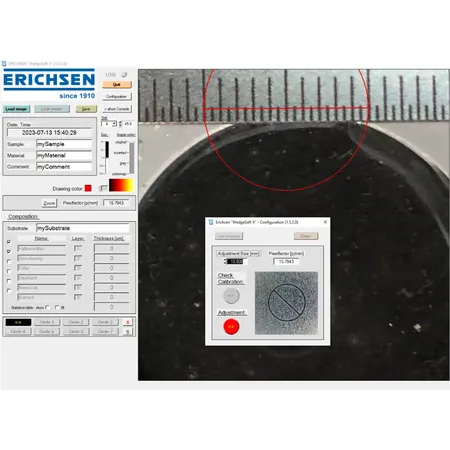

The image intended for measurement requires the camera scale factor of the recording medium as a verification variable, with the software offering optional corresponding input. Alternatively, a scale can be placed next to the bore and recorded with it, such as a calibrated steel ruler. Contrast lines are positioned by cursor at the transition contrast from substrate to coating, as well as at the upper edge of the coating.
Automatic Calculation
After entering the wedge cut angle, the software automatically calculates the layer thickness by triggering the process. The system supports simultaneous marking and measurement of multiple layers, with capability to measure up to 6 layers at once.
Scope of Delivery
The software package includes WedgeSoft X software and security dongle. Please note that the special TCG drill bit is not included in the scope of delivery and must be ordered separately.
