Digital Microscope Model 456-USB – ERICHSEN

Digital Microscope Model 456-USB – ERICHSEN

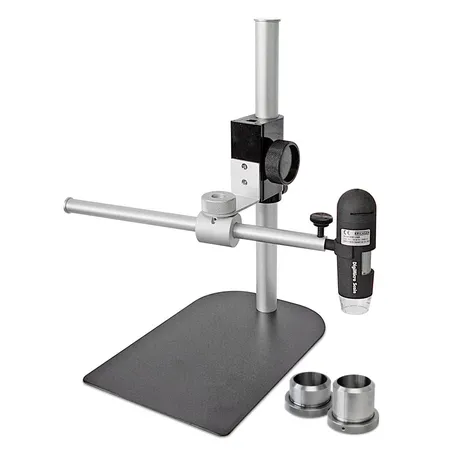

Introducing the High-Resolution Digital Microscope Model 456-USB

Discover the power of enhanced visual inspection with the Digital Microscope Model 456-USB by Erichsen. Designed for seamless connectivity to a PC or laptop, this high-resolution digital microscope revolutionizes the way professionals approach visual recognition, documentation, and analysis of intricate details unseen by the naked eye. Equipped with an 8x white LED adjustable illumination and a 2 million pixel CMOS image sensor, the Model 456-USB stands out as a precision tool for capturing immediate, on-the-spot images.

Featuring scalable precision measurement capabilities, this digital microscope is perfectly suited for a wide range of applications from damage inspection to detailed analysis, providing live view, video, and microscopic-precision imaging solutions.

Technical Specifications
Size
  • approx. 110 mm x 33 mm
DT /NDT
  • NDT
Frame rate
  • max. 30 FPS
Focus range
  • manual focus from 10 to 500 mm
Image sensor
  • 2 MegaPixels (interpolated to 5M)
Light source
  • 8 LED, adjustable
OSD language
  • English, German, Spanish, Korean, French, Russian
PC interface
  • USB 2.0
Photo format
  • JPEG oder BMP
Power source
  • 5 V DC from USB port
Video format
  • AVI
Bundle software
  • MicroCapture with measurement and calibration function
Operation system
  • Windows2000/XP/Vista/7, Mac OS X 10.5 or higher
Magnification ratio
  • 20x to 200x
Portable / Stationary
  • Portable
Still / video capture resolution
  • 2560x2048 (5M), 2000x1600, 1600x1280 (2M), 1280x1024, 1024x960,1024x768, 800x600, 640x480, 352x288, 320x240, 160x120

FAQ - Digital Microscope Model 456-USB – ERICHSEN

What are the main features of the Digital Microscope Model 456-USB?

Model 456-USB comes equipped with an 8x white LED adjustable illumination, a 2 million pixel CMOS image sensor, and provides scalable precision measurement capabilities. It's designed for seamless connectivity to PCs and laptops, ideal for a wide range of applications such as detailed analysis and damage inspection.

What kind of connectivity does the microscope support?

The microscope supports USB 2.0 connectivity, allowing for easy and seamless connection to your PC or laptop for immediate image capture and analysis.

What are the system requirements for using the microscope?

The system requirements to operate the microscope effectively are Windows2000/XP/Vista/7, or Mac OS X 10.5 or higher. This ensures compatibility with a broad range of operating systems for flexibility in use.

Can I adjust the magnification ratio?

Yes, the Digital Microscope Model 456-USB offers an adjustable magnification ratio from 20x to 200x, allowing you to zoom in on the details that matter most for your specific needs.

Is the Digital Microscope portable?

Yes, the Model 456-USB is designed to be portable with its compact size (approx. 110 mm x 33 mm), making it an excellent choice for professionals who require mobility in their visual inspection and analysis tasks.

What types of images and videos can I capture with this microscope?

The microscope supports JPEG or BMP photo formats and AVI video format. It offers a wide range of still/video capture resolutions, including 2560x2048 (5M), down to 160x120, suiting various documentation and analysis needs.

Does the microscope come with any software?

Yes, it's bundled with MicroCapture software, which includes measurement and calibration functions to aid in detailed analysis and documentation.
