State-of-the-Art Metal Testing

The Erichsen Model 111 Sheet Metal Testing Machine represents the pinnacle of precision and user-friendly design in the industry. Engineered with an electro-hydraulic drive system and capable of exerting a maximum force of 45 kN, this instrument sets the standard for performance and reliability. Designed with efficiency in mind, the machine features a touch panel for clear menu navigation, offering five programmable modes and tool changes, secured against unauthorized modifications with password protection. The user can easily monitor essential parameters like drawing stroke, force, and speed, ensuring optimal functionality.

Optimized for Quality Assurance

This machinery excels in quality conformance inspections and control over sheet and strip metals, playing a vital role in production monitoring thanks to its sturdy build. Employing the Model 111 facilitates lower manufacturing costs by permitting spot checks on cold rolled sheet quality during production phases or within processing departments. It enables swift quality assessment of incoming materials, ensuring compliance with predefined standards without necessitating elaborate test setups. The device also aids in determining the most suitable sheet thickness for specific drawing workpieces, optimizing the cost-effectiveness ratio for production processes. Through the ERICHSEN Cupping Value, it provides quantitative analysis of sheet quality, fostering effective communication between producers and consumers of sheet metal.

Design and Delivery

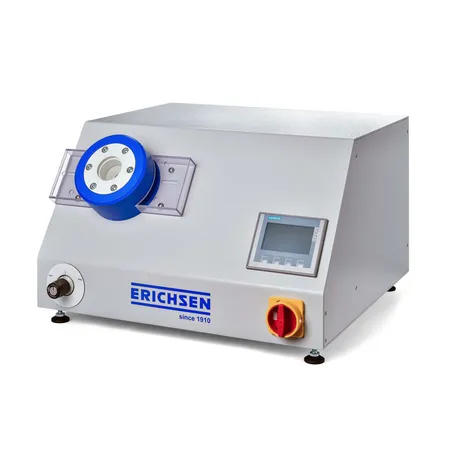

The Model 111 is a compact, desktop model requiring minimal operational space. Its design encases all hydraulic and electronic controls within a robust metal housing, with operational controls and the touch panel conveniently assembled on the front panel. The angled installation of the test cylinder enhances user comfort during tests. The machine’s design ensures minimal wear for consistent testing accuracy over time. The package includes the Sheet and Strip Metal Testing Machine Model 111, Test Tool No. 27, a hydraulic oil filling, and an operating manual, offering comprehensive support for immediate deployment in quality control operations.

Technical Specifications
Drive
  • Electro-hydraulic
Test 1
  • Erichsen cupping
Dimensions
  • approx. 620 x 370 x 700 mm
Net weight
  • approx. 135 kg
Mains supply
  • 230 V, 3~, 50 Hz
Punch stroke
  • 19 mm
Drawing Force
  • max. 45 kN / 100 bar
Drawing Speed
  • max. 150 mm/min
Power consumption
  • 1,5 kW
Blank Holder Force
  • 10 kN + 1,5 kN
Specimen dimensions
  • max. 105 x 2 mm (sheet width x sheet thickness - applicable for a tensile strength of approx. 400 N/mm2)
Portable / Stationary
  • Stationary

FAQ - Electro-hydraulic Erichsen cupping machine (45 kN) – Model 111 – ERICHSEN

What are the key features of the Erichsen Model 111 Sheet Metal Testing Machine?

The Model 111 is engineered with an electro-hydraulic drive system, capable of exerting up to 45 kN force. It has a touch panel for easy navigation, offering five programmable modes and tool changes. It also features password protection for settings, allowing monitoring of drawing stroke, force, and speed to ensure optimal functionality. It's designed for efficiency and reliability in metal testing.

How does the Model 111 contribute to quality assurance in sheet metal production?

This machine is essential for quality conformance inspections and production monitoring of sheet and strip metals. It allows for quick spot checks on cold rolled sheet quality and contributes to lower manufacturing costs. The ERICHSEN Cupping Value provided by the machine helps in determining the most suitable sheet thickness for drawing workpieces, ensuring compliance with standards and optimal cost-effectiveness in production processes.

What are the dimensions and weight of the Model 111 Machine?

The dimensions of the Model 111 are approximately 620 x 370 x 700 mm, with a net weight of about 135 kg. This compact, desktop model requires minimal operational space, fitting conveniently in various settings.

Is the Electro-hydraulic Erichsen Cupping Machine Model 111 easy to set up and operate?

Yes, the Model 111 is designed for easy setup and operation. It encases all hydraulic and electronic controls within a robust metal housing, with operational controls and the touch panel on the front panel. The package includes the machine, Test Tool No. 27, a hydraulic oil filling, and an operating manual for comprehensive support.

What type of power supply is required for the Model 111?

The machine requires a mains supply of 230 V, 3~, 50 Hz. With a power consumption of 1.5 kW, it is designed to efficiently use power during operation.

Can the Model 111 be used for tests other than the Erichsen cupping test?

While the primary function of the Model 111 is geared towards the Erichsen cupping test, its precision design and customizable settings could potentially accommodate other relevant metal testing procedures within its specification range. However, for specific test compatibility and setup, direct consultation with ERICHSEN is recommended.

Is the Model 111 portable?

No, the Model 111 is a stationary machine due to its robust design and size. Its operational setup is intended for desktop use in quality control laboratories or production areas, where consistent access and stability are essential.
