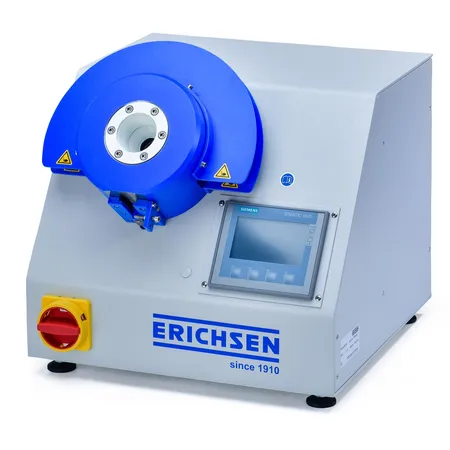

Electromotive paint testing machine (Erichsen cupping) – Model 202 EM – ERICHSEN

The Model 202 EM is a high-performance Lacquer and Paint Testing Machine designed for measuring the elongation and adhesion properties of protective paints, ensuring compliance with DIN EN ISO 1520 and other international standards.

This machine uses an electromotive drive, allowing for superior testing accuracy and consistent performance during paint and lacquer testing processes.

With its laterally opened test head, test tool compliant with DIN EN ISO 1520, electric installation for microscope illumination, and digital display, the Model 202 EM delivers precise ERICHSEN cupping value acquisition and an enhanced operational efficiency through an intuitive touch panel.

Absolutely, the Model 202 EM is an indispensable tool for quality control in both paint production and application settings, providing valuable insights into the coating material's practical adaptability and performance.

Yes, the Model 202 EM offers an adjustable drawing speed ranging from 2 mm/min to 60 mm/min, which can be infinitely varied according to testing requirements.

The machine measures 470 mm in width, 530 mm in depth, and 410 mm in height, with a net weight of approximately 80 kg, making it a robust yet manageable addition to quality control labs.

Yes, the Model 202 EM is equipped with password-protected levels, ensuring that operational settings are safeguarded against unauthorized access, thereby maintaining the integrity of the testing process.
